Removal Procedure

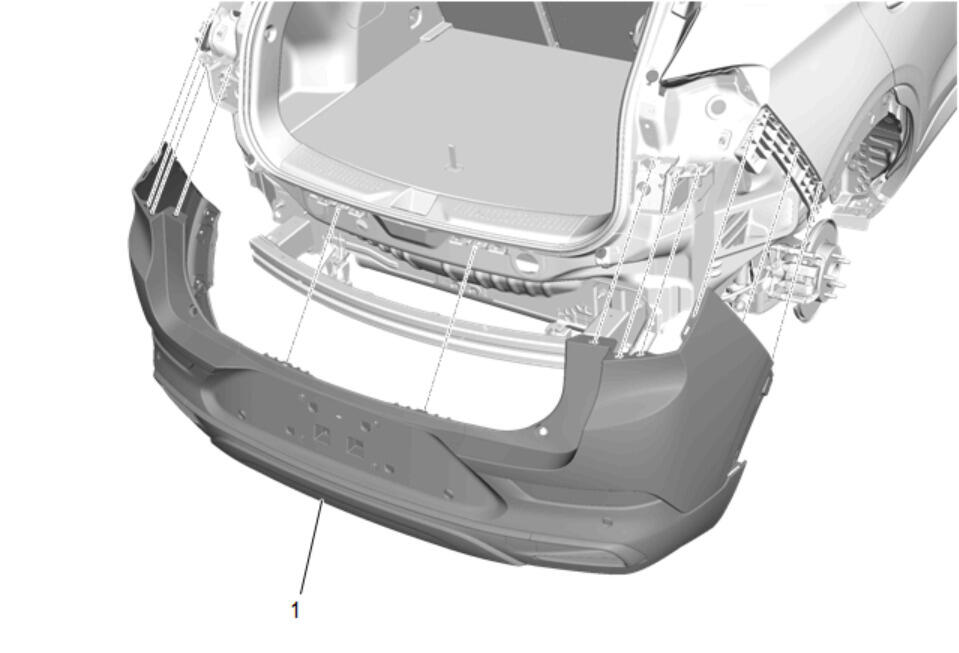

  1. GM5220200Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Replacement

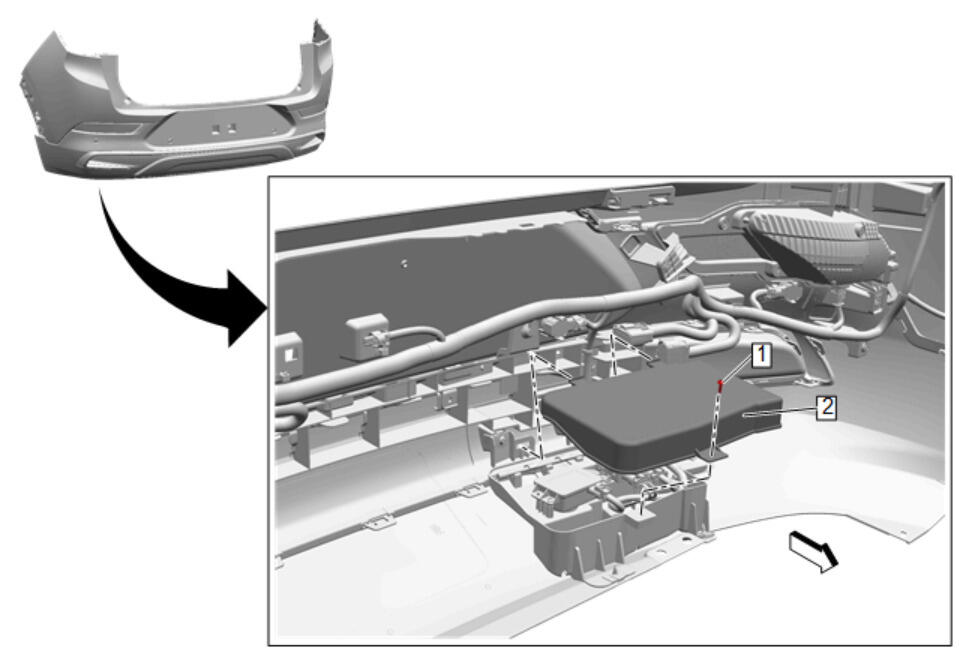

  2. GM5390689Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor Shield (2) - Remove - Rear Closure Hands Free Sensor Shield Replacement

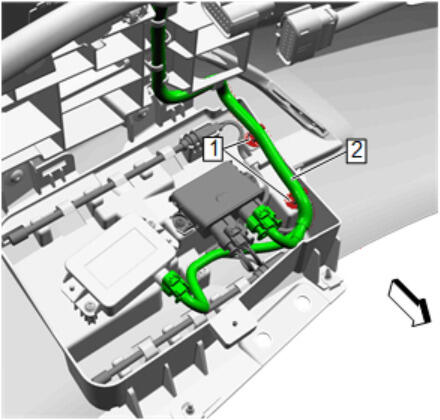

  3. GM5390761Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove [2x]

  4. Wiring Harness (2) - Reposition

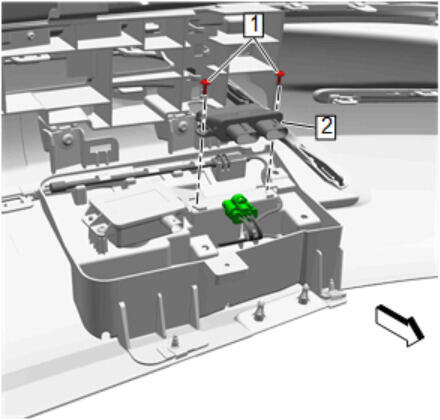

  5. GM5390762Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Screw (1) - Remove [2x]

  6. Disconnect the electrical connector.
  7. Rear Closure Hands Free Module (2) - Remove
