Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Accessory and Liftgate Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

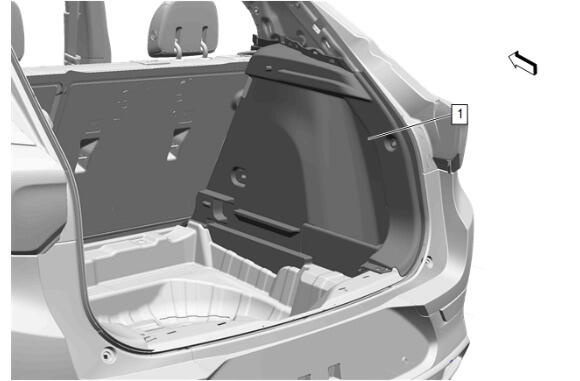

Quarter Lower Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Body Lock Pillar Upper Trim Panel (2) - Right Side - Install - Body Lock Pillar Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Cargo Tie Down Loop (2)- Right Side - Install [2x] - Cargo Tie Down Loop Replacement
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Convenience Net Retainer (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Liftgate Sill Garnish Molding (1) - Install - Liftgate Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Load Floor Stowage Compartment Cover (1) - Install - Load Floor Stowage Compartment Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Luggage Shade (1) - Install - Luggage Shade Replacement
Perform the necessary programming and setup procedure: K39 Liftgate Control Module: Programming and Setup
