Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

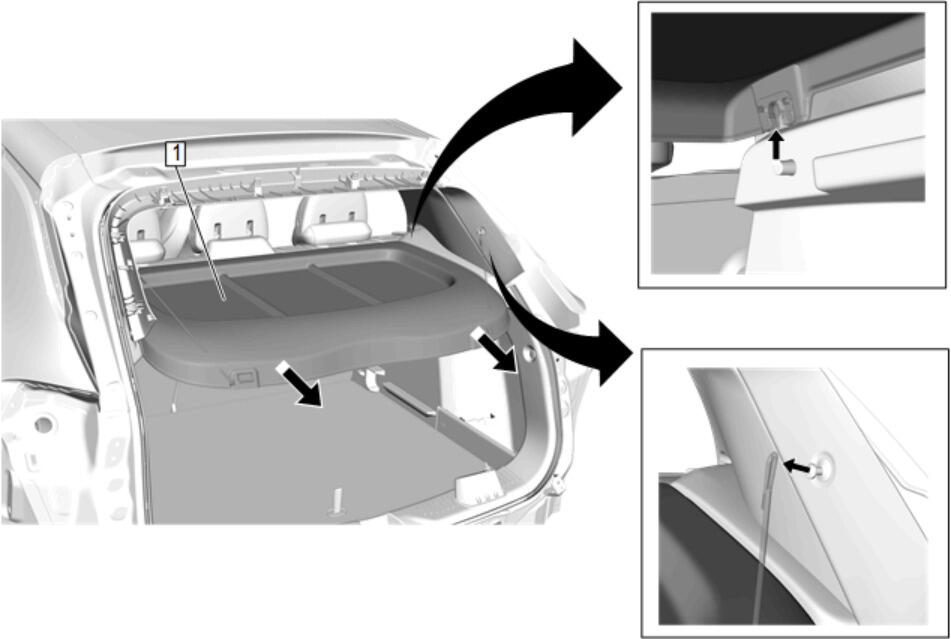

Luggage Shade (1) - Remove - Luggage Shade Replacement
Courtesy of GENERAL MOTORS COMPANY

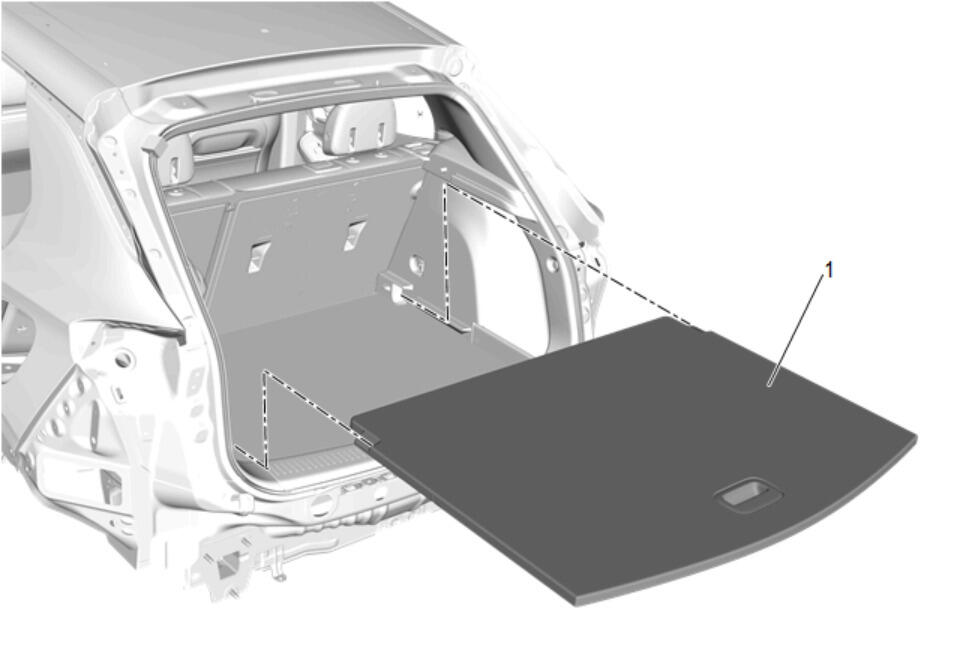

Load Floor Stowage Compartment Cover (1) - Remove - Load Floor Stowage Compartment Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

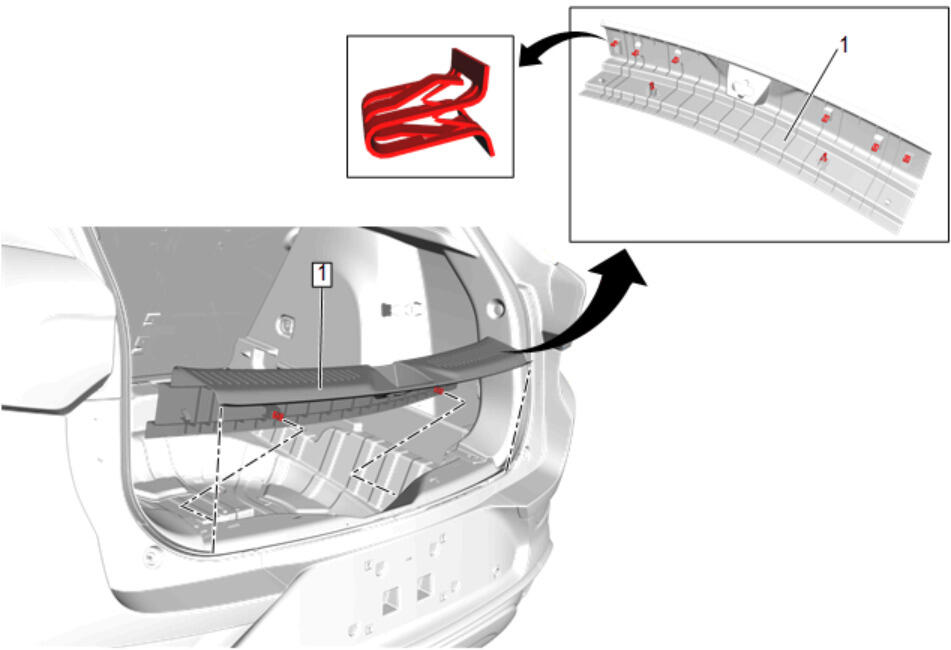

Liftgate Sill Garnish Molding (1) - Remove - Liftgate Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

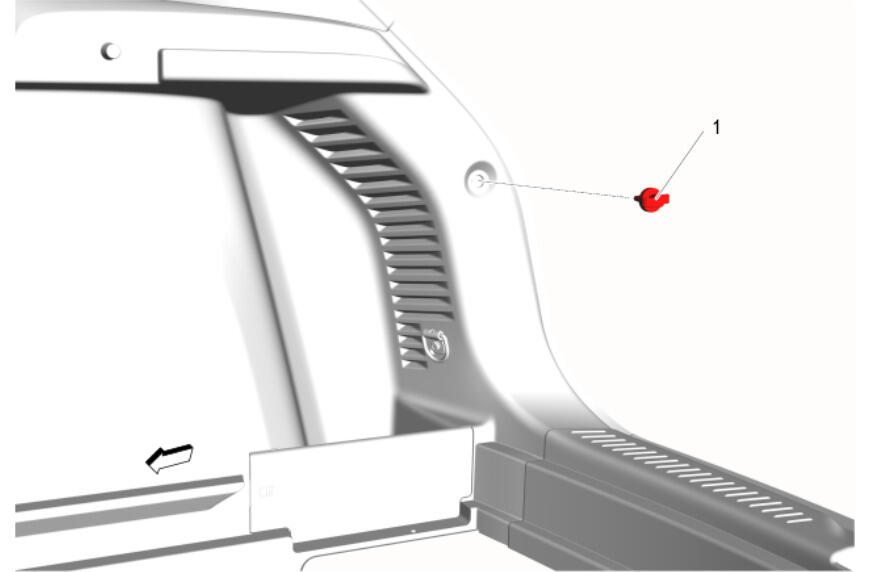

{If equipped} Convenience Net Retainer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

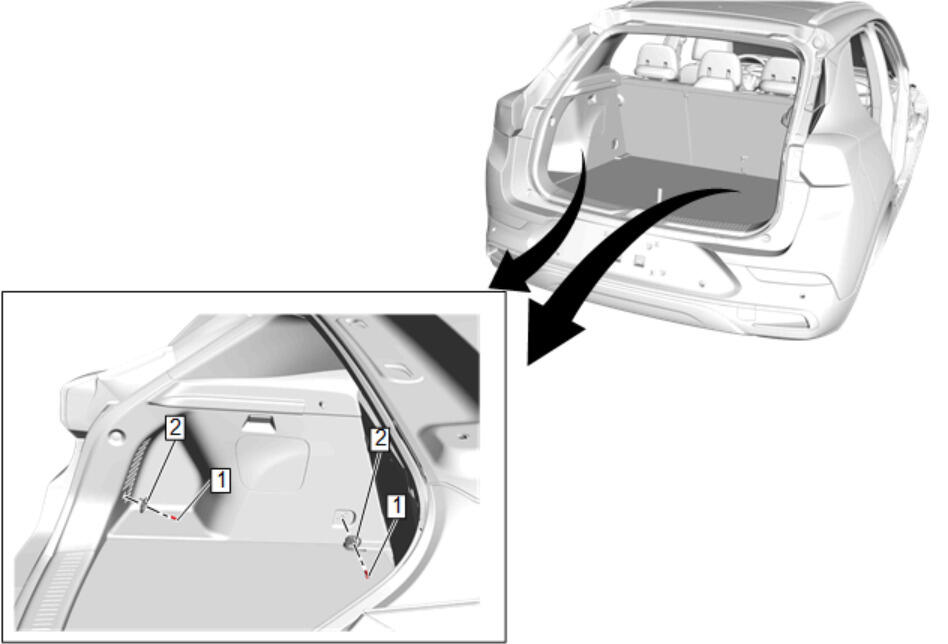

Cargo Tie Down Loop (2)- Right Side - Remove [2x] - Cargo Tie Down Loop Replacement
Courtesy of GENERAL MOTORS COMPANY

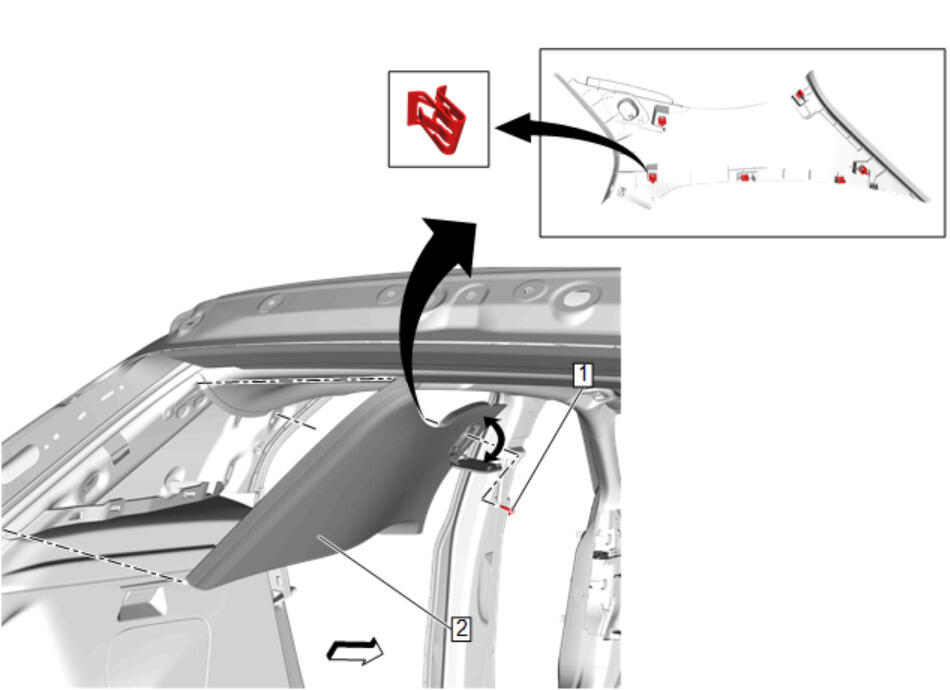

Body Lock Pillar Upper Trim Panel (2) - Remove - Body Lock Pillar Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

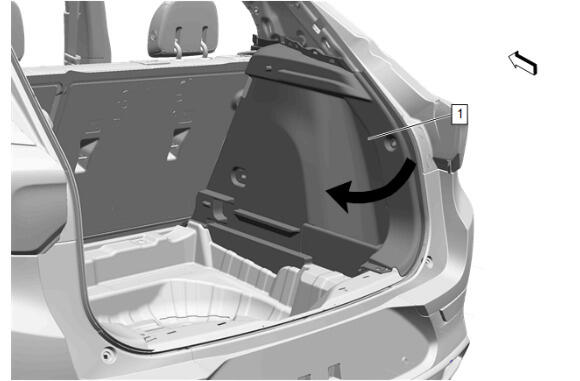

Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel (1) from the quarter inner panel.
Do not need to remove the panel completely. Reposition it slightly so that you can work on it.
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.

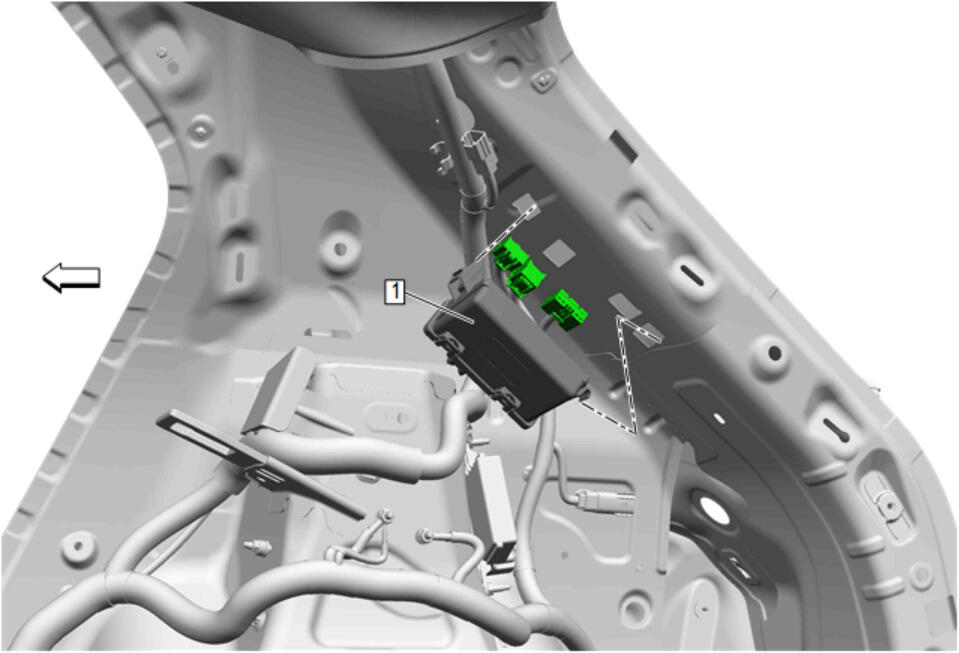

Accessory and Liftgate Control Module (1) - Remove
