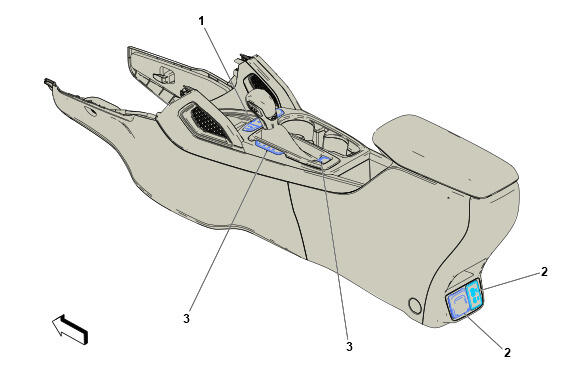

Front Floor Console Components (1 of 4)

GM5416713Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Components (1 of 4)

Component Name Callout
S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console 1
X92 USB Receptacle (USS) X92 USB Receptacle 2
X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1 , or X81 Accessory Power Receptacle - 110V AC X2 2
S91 Park Brake Control Switch S91 Park Brake Control Switch (J71) 3
P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator 3
