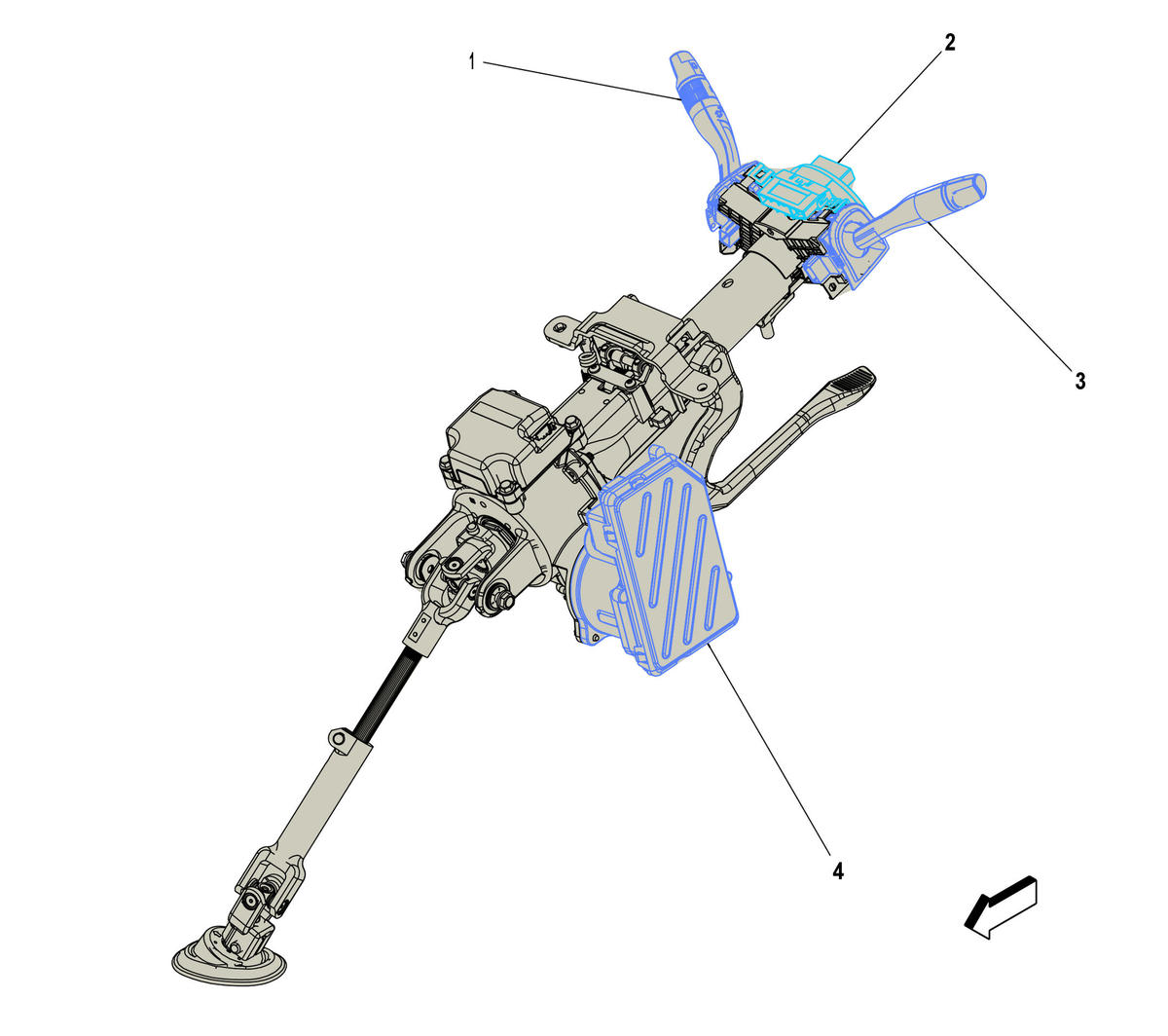

Steering Column Components (2 of 3) (BTM)

GM5416717Courtesy of GENERAL MOTORS COMPANY
Steering Column Components (2 of 3) (BTM)

Component Name Callout
S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch 1
X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2 2
S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch 3
K43 Power Steering Control Module K43 Power Steering Control Module X1 , or K43 Power Steering Control Module X2 4
