Overhead Console Components

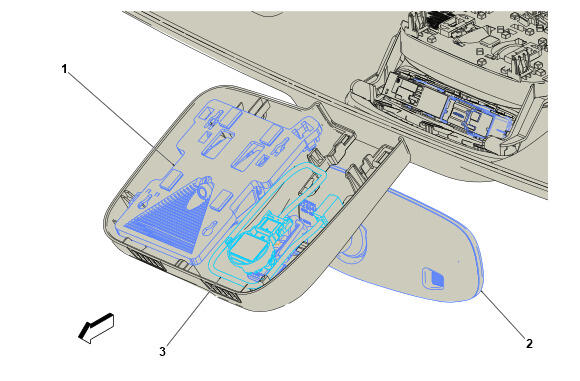

GM5416725Courtesy of GENERAL MOTORS COMPANY
Overhead Console Components

Component Name Callout
B174W Frontview Camera - Windshield (UEU) B174W Frontview Camera - Windshield 1
A10 Inside Rearview Mirror A10 Inside Rearview Mirror 2
B160 Windshield Temperature and Inside Moisture Sensor (ASV + C68) B160 Windshield Temperature and Inside Moisture Sensor 3
