Radiator/Condenser Components

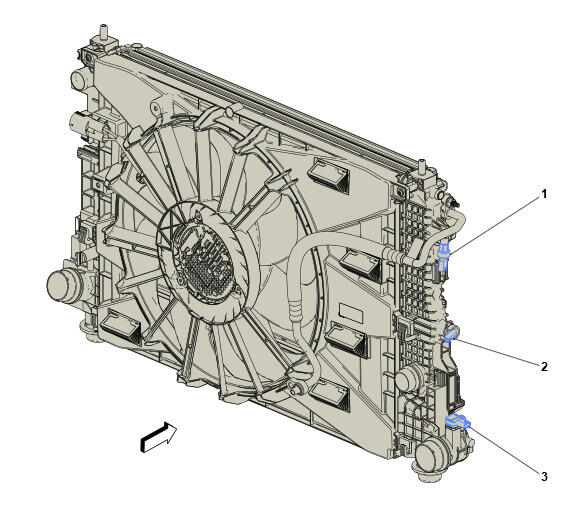

GM5439498Courtesy of GENERAL MOTORS COMPANY
Radiator/Condenser Components

Component Name Callout
B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor 1
B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor 2
B111 Turbocharger Boost Sensor B111 Turbocharger Boost Sensor 3
