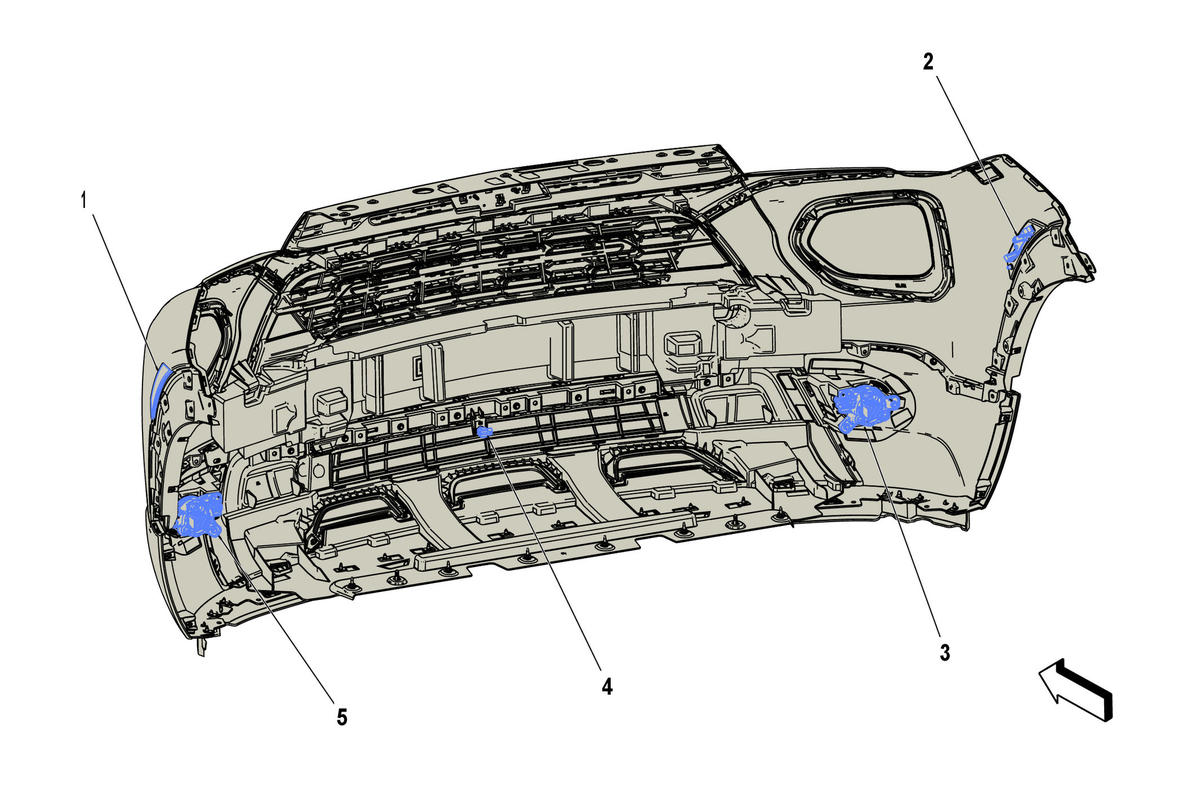

Inside Front Fascia Components (-BOP)
Inside Front Fascia Components (-BOP)
| Component Name | Callout |
|---|---|
| E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front | 1 |
| E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front | 2 |
| E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front (T3U) | 3 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 4 |
| E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front (T3U) | 5 |
