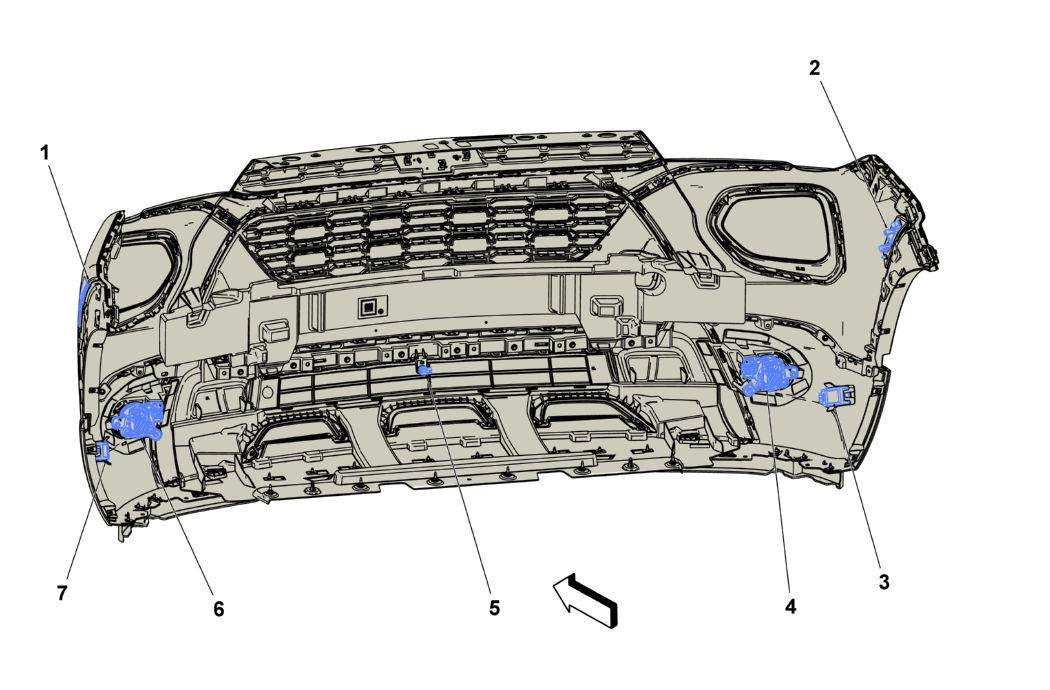

Inside Front Fascia Components (BOP)
Inside Front Fascia Components (BOP)
| Component Name | Callout |
|---|---|
| E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front | 1 |
| E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front | 2 |
| B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 | 3 |
| E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front (T3U) | 4 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 5 |
| E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front (T3U) | 6 |
| B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 | 7 |
