A7 Fuel Pump and Level Sensor Assembly (-F48)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

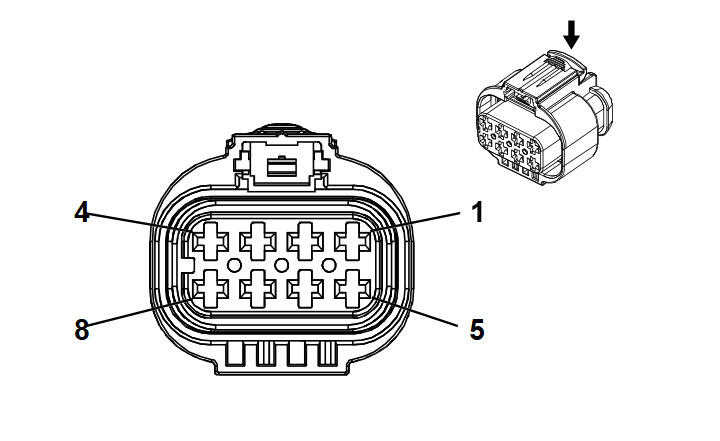

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-35 (VT) | No Tool Required |
| II | Not required | J-35616-4A (PU) | No Tool Required |
| III | Not required | Not Available | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 2.5 | GY | 120 | Fuel Pump Control | I | -F48 |
| 2 | 2.5 | YE / GY | 4137 | Fuel Pump Supply Voltage Phase 2 | I | -F48 |
| 3 | 2.5 | WH / BN | 4138 | Fuel Pump Supply Voltage Phase 3 | I | -F48 |
| 4 | 0.5 | BU | 7443 | Fuel Pump Assembly Shield Ground | II | -F48 |
| 5 | 0.5 | BU / VT | 1589 | Primary Fuel Level Sensor Signal | II | -F48 |
| 6 | 0.5 0.5 |
BK / GN BK / GN |
6281 580 |
Fuel Level Sensor Low Reference Engine Control Sensors Low Reference 2 |
II III |
-F48 LXY-NUG |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.35 | BK / GN | 580 | Engine Control Sensors Low Reference 2 | III | - |
