S38 Ignition Mode Switch
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

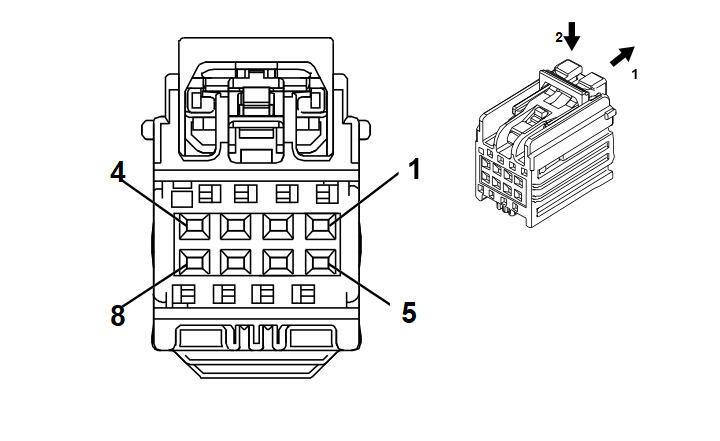

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 13593893
- Service Connector: 19355209
- Description: 8 -Way F YESC Kaizen Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
BN / BK |
5720 |
Ignition Mode Switch Accessory LED Signal |
I |
- |
| 3 |
0.35 |
GN / BK |
3558 |
Passive Start Switch Signal 2 |
I |
- |
| 4 |
0.35 |
BK |
1650 |
Ground |
I |
- |
| 5 |
0.35 |
BU / BK |
5719 |
Ignition Mode Switch Start LED Signal |
I |
- |
| 6 |
0.35 |
BU / GN |
5723 |
Ignition Mode Switch Mode Voltage |
I |
- |
| 7 |
0.35 |
BK / GY |
3559 |
Passive Start Switch 2 Low Reference |
I |
- |
| 8 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
