Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

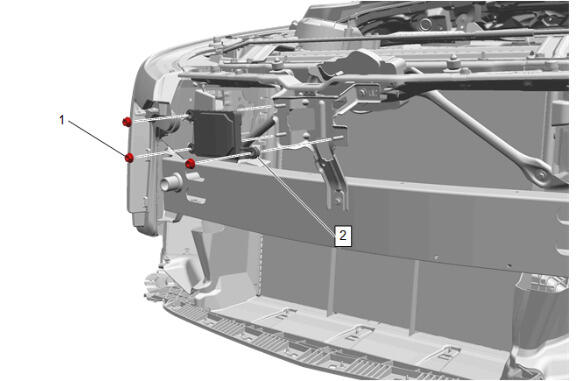

Forward Range Radar Sensor (2) - Install
- Forward Range Radar Module/Sensor Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
- Connect the electrical connector.
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
- Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
CAUTION:
Refer to Fastener Caution .
