Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Ensure the retaining tabs are properly aligned.

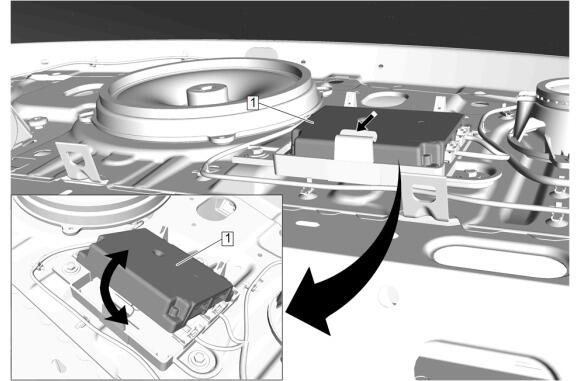

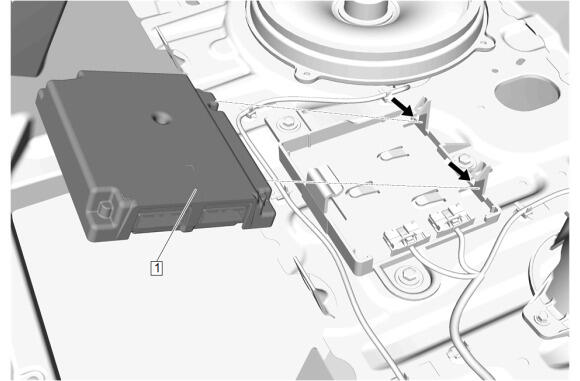

- Image Processing Module (1) - Install
Connect the electrical connectors.
- Secure the retaining tab.

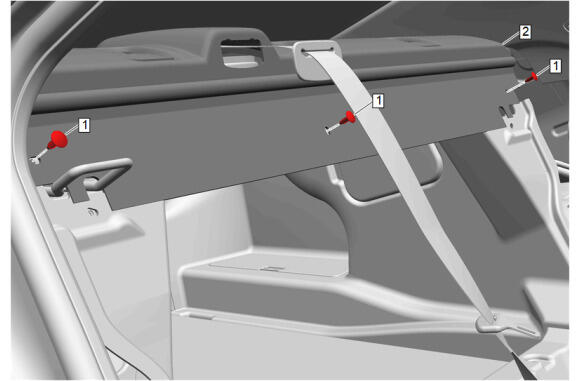

Rear Window Panel Trim (2) Install
- With the aid of an assistant, guide the rear window panel trim (1) rearward in the vehicle and downward to clear the speaker system.
- Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.
- Rear Window Panel Trim Retainer (1) - Install [ 3x ]
Connect the electrical connector.
- Quarter Upper Trim Panel (3) - Install [ 2x ]
- Quarter Window Trim Finish Panel Bolt (2) Install and tighten [ 2x ] - Fastener Specifications
- Quarter Window Trim Finish Panel Bolt Cap - Install [ 2x ]
- Enable the SIR System. SIR Disabling and Enabling .
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
