Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

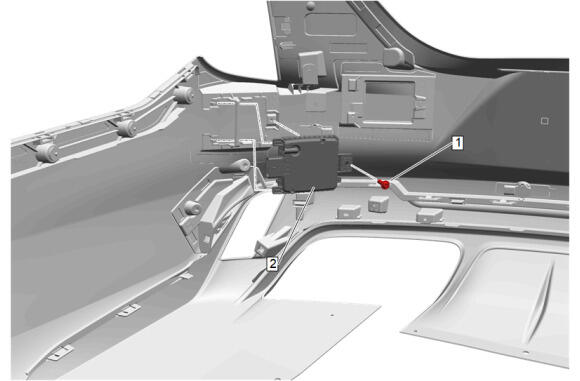

Side Object Sensing Alert Module (2) - Install
- Side Object Sensing Alert Module Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector.

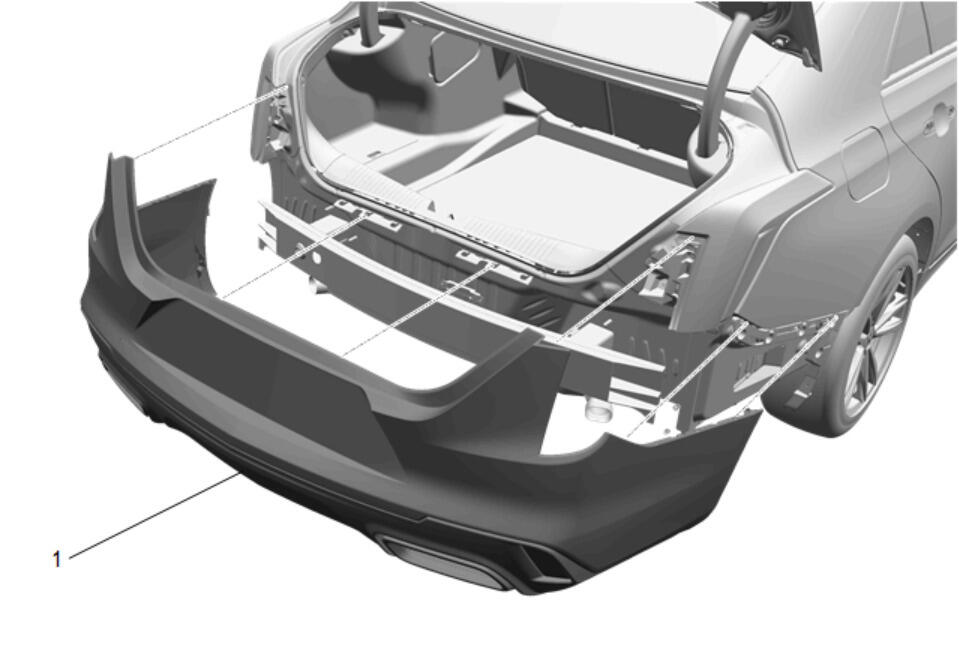

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
