Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

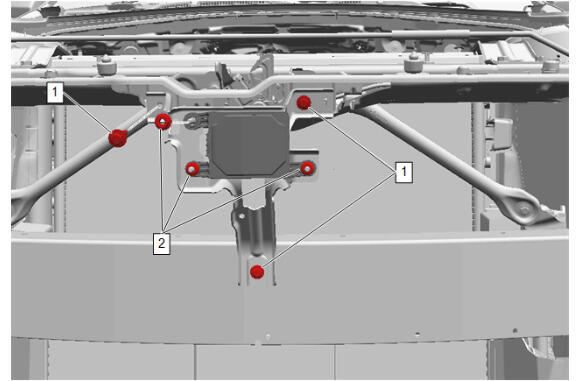

Front Body Mounted Sensors
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Module/Sensor Bolt [ 3x ] | - | - | 9 (80 lb in) | Front Bumper Impact Bar Replacement (without Forward Radar)Front Bumper Impact Bar Replacement (with Forward Radar) |
| 2 | Forward Range Radar Module/Sensor Nut [ 3x ] | - | - | 9 N.m (80 lb in) | Forward Range Radar Sensor Replacement |
Front Fascia Mounted Sensors
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt @ Front Bumper Fascia | - | - | 2.5 (22 lb in) | Front Short Range Radar Sensor Replacement |

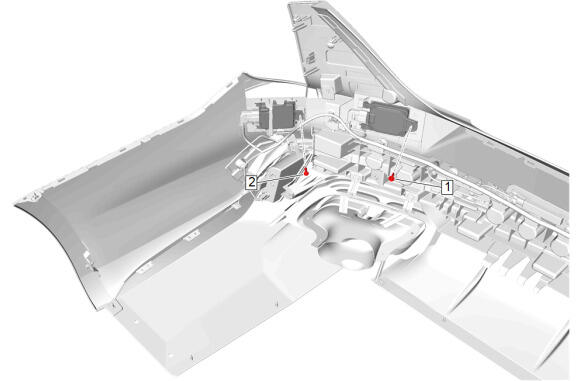

Rear Fascia Mounted Sensors
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt @ Rear Bumper Fascia | - | - | 2.5 N.m (22 lb in) | Rear Short Range Radar Sensor Replacement |
| 2 | Side Object Sensing Alert Module Bolt | - | - | 2.5 (22 lb in) | Side Obstacle Detection Control Module Replacement |
