Steering Column Tilt Wheel and Telescope Control Module Replacement

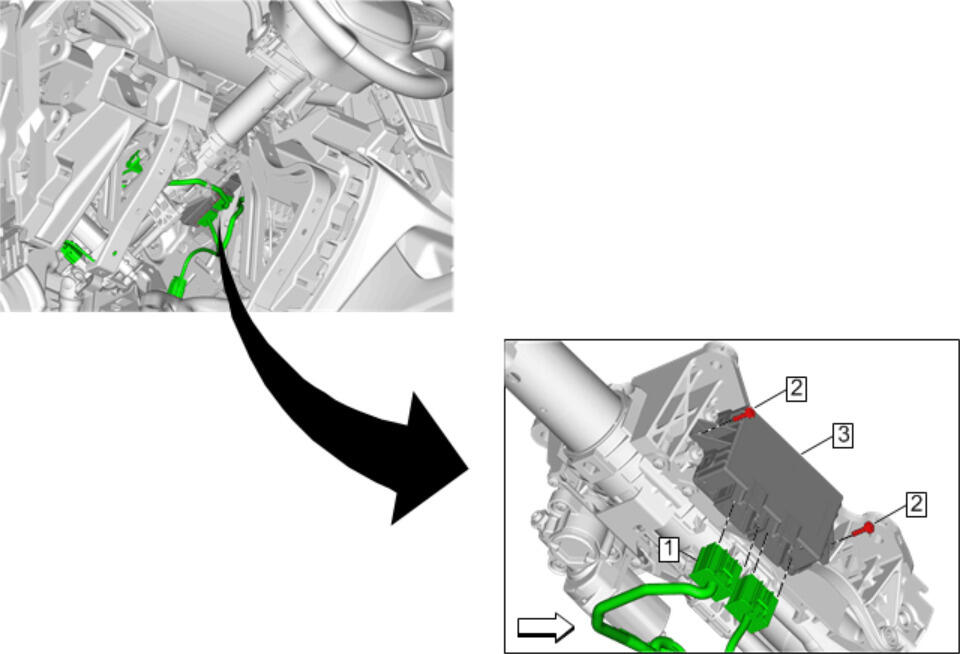

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Knee Bolster Bracket Replacement |
|
| 1 | Steering Column Tilt Wheel and Telescope Control Module Connector [2x] Procedure Disconnect the electrical connectors. |
| 2 | Steering Column Tilt Wheel and Telescope Control Module Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 3 | Steering Column Tilt Wheel and Telescope Control Module Procedure Program the steering column tilt wheel and telescope control module. Control Module References |
