Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

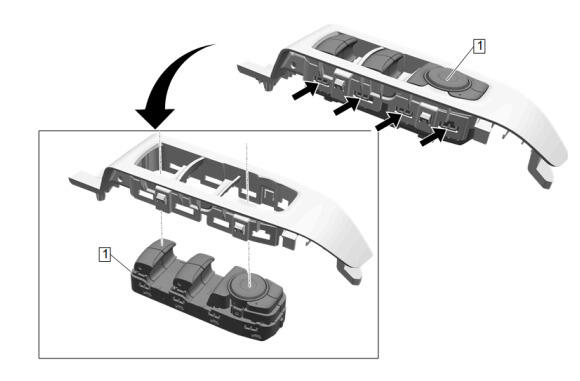

  1. GM5483637Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) - Install

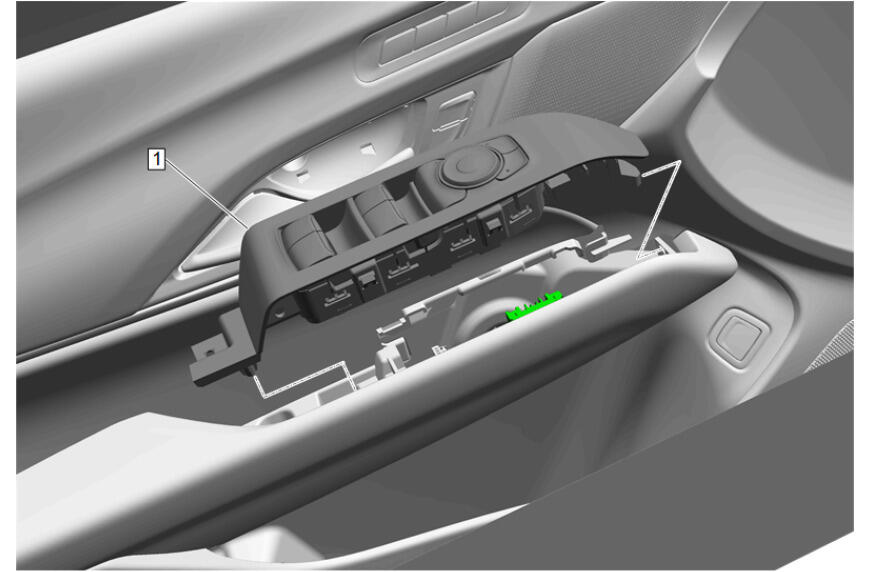

  2. GM5448390Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Reinstall the harness retainers, as needed.
  4. Rotate the front side door armrest switch mount plate (1) up and forward to hook the front retaining feature.
  5. Front Side Door Armrest Switch Mount Plate (1) - Install

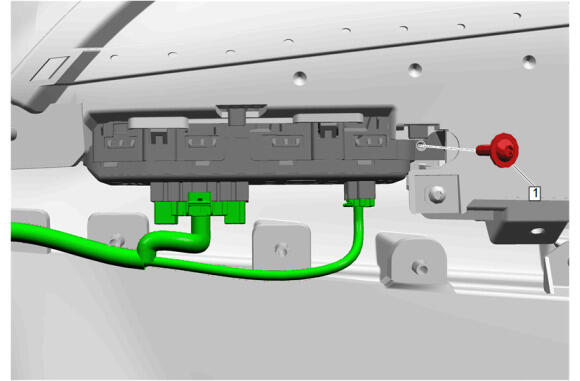

  6. GM5483721Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Side Door Trim Bolt (1) - Install and tighten - Fastener Specifications

  7. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
