Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5325884Courtesy of GENERAL MOTORS COMPANY

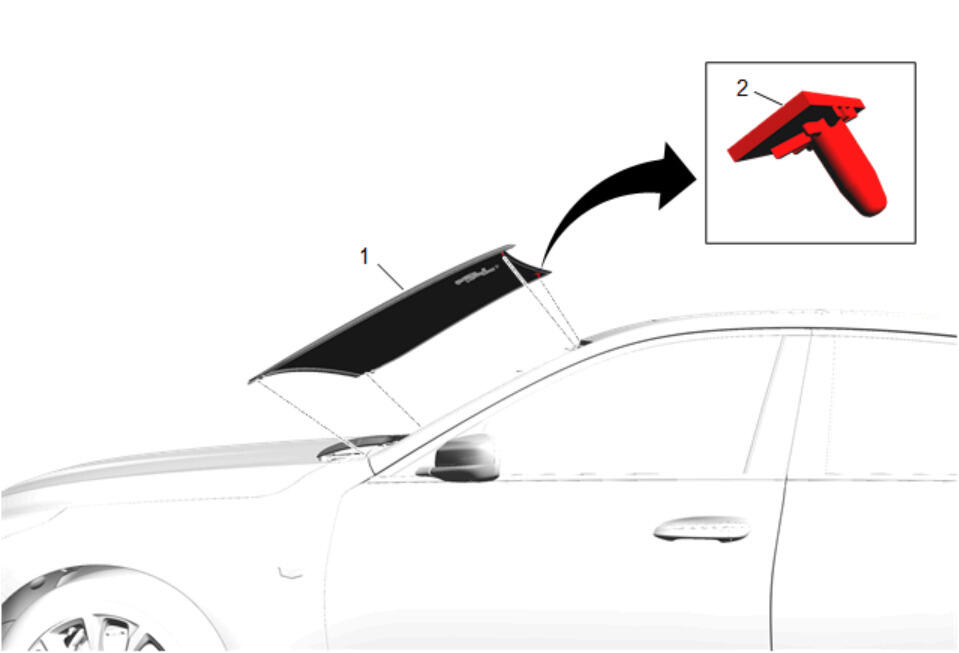

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pin (2) to the vehicle.
  3. GM5325805Courtesy of GENERAL MOTORS COMPANY

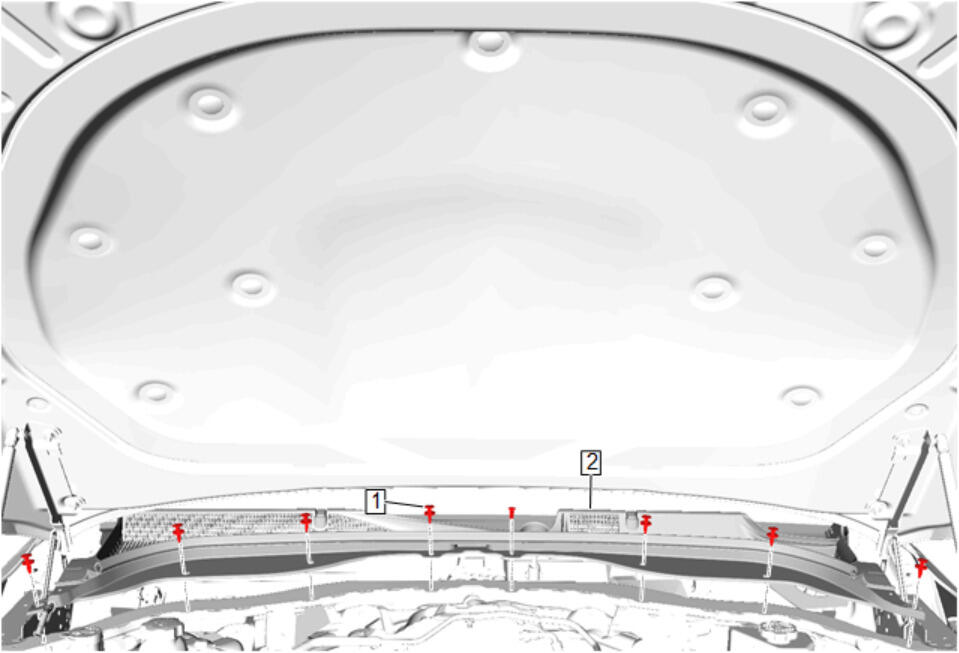

  4. Air Inlet Grille Panel (2) - Install
    1. Connect the windshield washer nozzle hose from the windshield washer pump hose.
    2. Tilt down the front edge of the air inlet grille panel, slide the grille panel rearward and under both hood hinges.
    3. Air inlet grill panel retainers (1) - Install [ 8x ]
  5. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Install the air inlet grille panel extension (1).

    1. Remove the masking tape.
    2. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  6. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  7. Position the windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
    8. CAUTION:

    Refer to Fastener Caution .

  8. Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
  9. Windshield Wiper Arm Finish Cap (1) - Install
  10. GM5330473Courtesy of GENERAL MOTORS COMPANY

    Clean the inside of the windshield before installing the front view driver information camera bracket (1).

  11. Front View Driver Information Camera Bracket (1) - Install
  12. GM5471192Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  13. Slide the front view camera (1) forward to engage.
  14. GM5471185Courtesy of GENERAL MOTORS COMPANY

    Rotate the front view camera (1) upward and secure the retaining tabs.

  15. Connect the electrical connector.
  16. GM5323869Courtesy of GENERAL MOTORS COMPANY

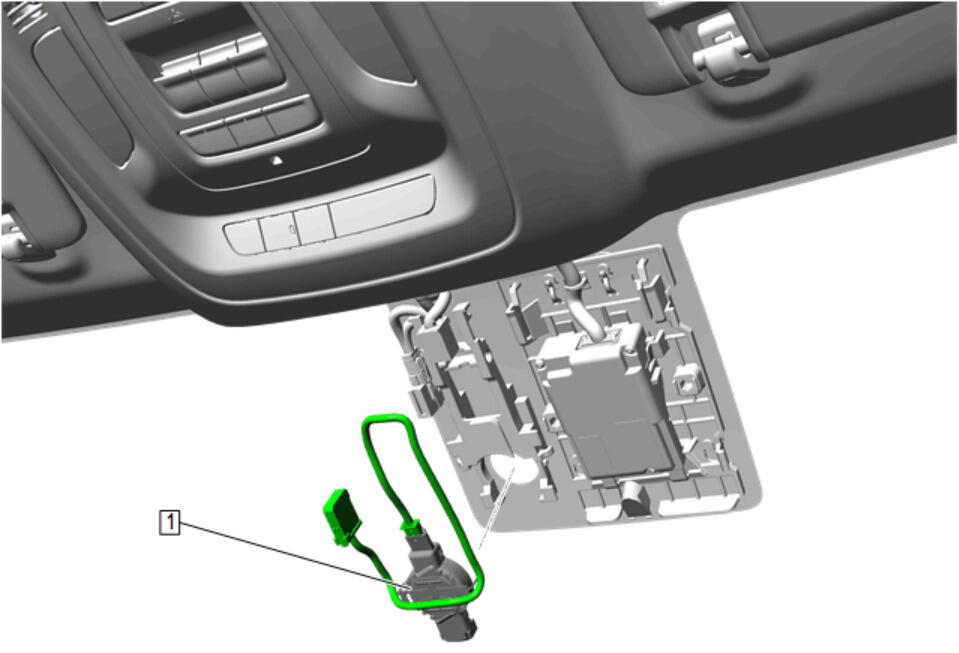

    Inside Air Moisture and Windshield Temperature Sensor (1) - Install

  17. Connect the electrical connector.
  18. GM5432140Courtesy of GENERAL MOTORS COMPANY

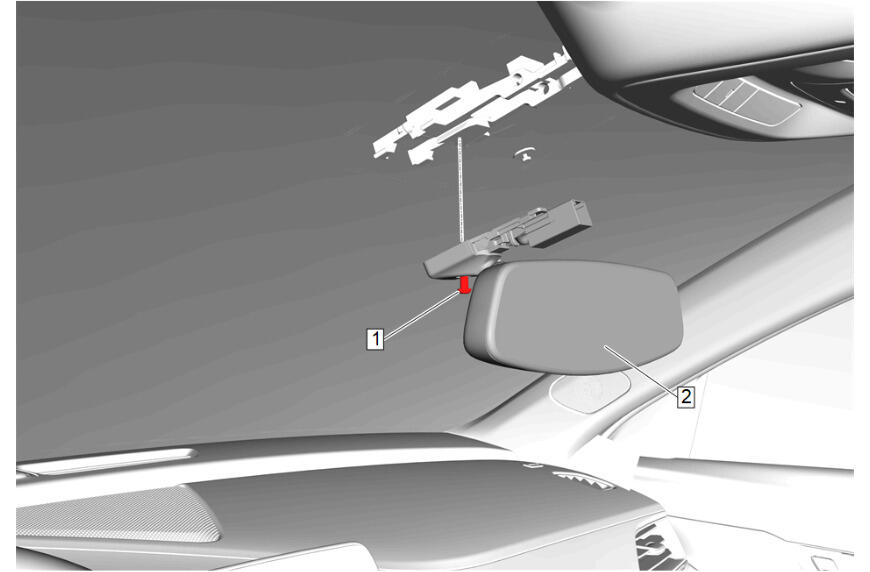

    Inside Rearview Mirror (2) - Install

  19. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  20. GM5330339Courtesy of GENERAL MOTORS COMPANY

    Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

  21. GM5330333Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  22. Windshield Garnish Molding
  23. GM5423347Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  24. Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
  25. Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
  26. Windshield Garnish Molding (1) - Install
  27. GM5416557Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

    1. Lubricate the windshield with clean washer fluid.
    2. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
    3. Ensure the windshield wipers are in the full park position.
    4. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
  28. Enable the SIR System.
  29. Perform the necessary programming and setup procedure: Control Module References
