Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

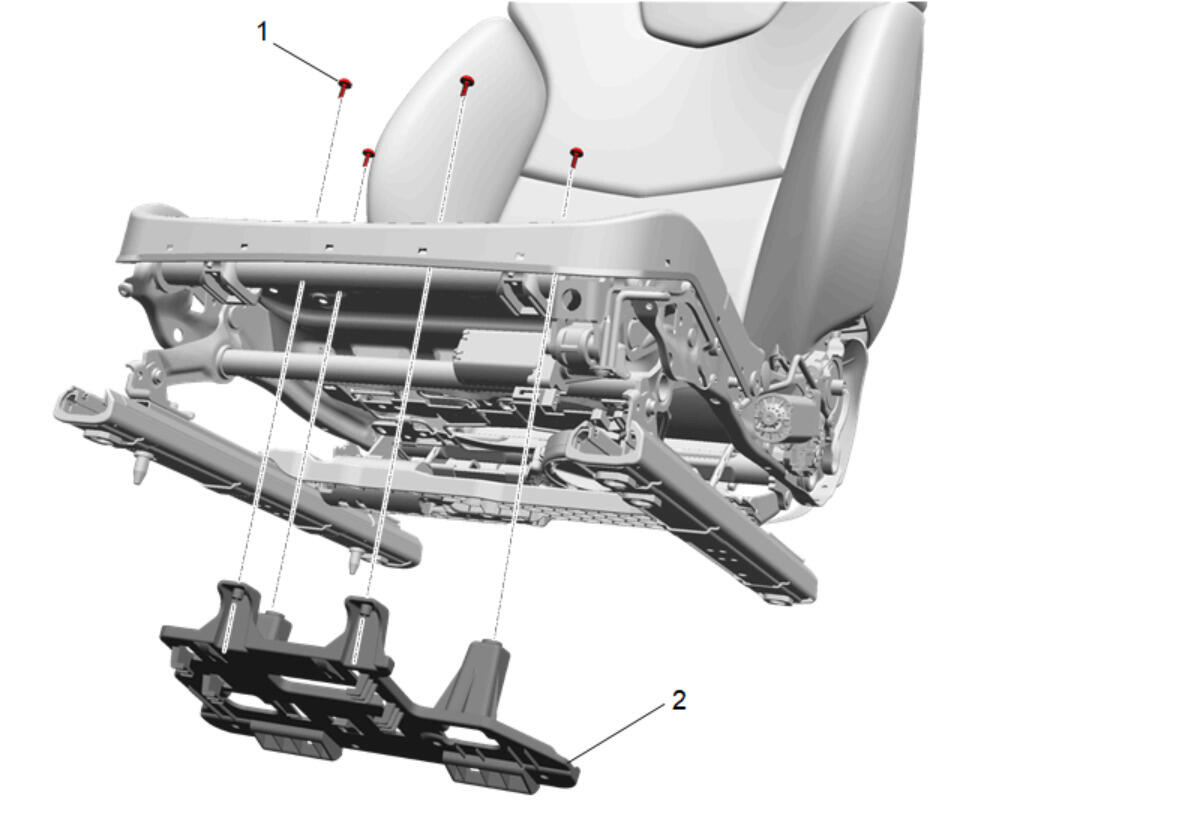

  1. GM5314532Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Memory Module Bracket (2) - Install

  2. Position the wiring harness.
  3. CAUTION:

    Refer to Fastener Caution .

  4. Front Seat Adjuster Memory Module Bracket Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  5. GM5461044Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover and Pad(2) - Install - Front Seat Cushion Cover and Pad Removal and Installation
