Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- Quantity of fasteners may vary based on option content.
- Some components not shown for graphic clarity.

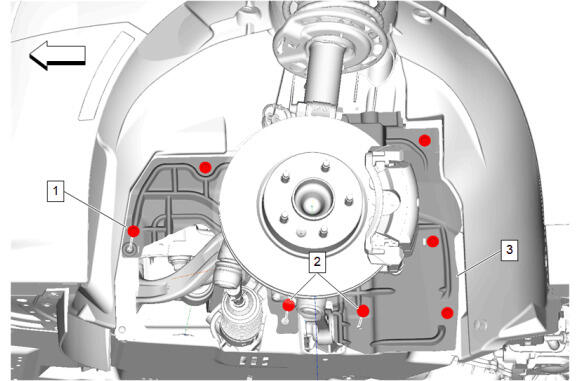

Engine Front Splash Shield (3) - Install
- Engine Front Splash Shield Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
- Engine Front Splash Shield Retainer (2) - Install [ 2x ]
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution
