Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

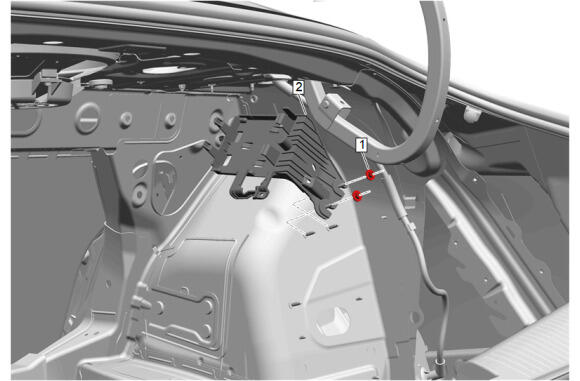

Communication Interface Module Bracket (2) - Install
- Communication Interface Module Bracket Nut (1) - Install and tighten [ 2x ] - Fastener Specifications
- Position the wiring harness.

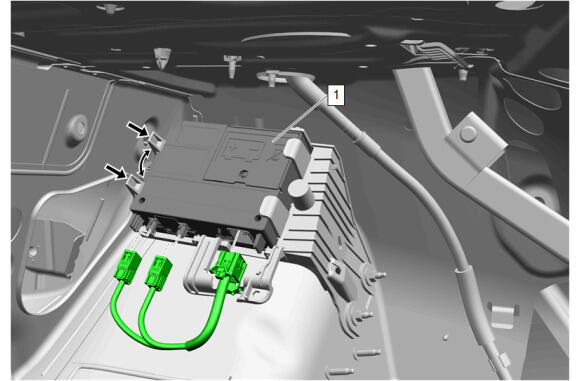

Communication Interface Module (1) - Install
- Secure the retaining tab.
- Connect the electrical connectors.

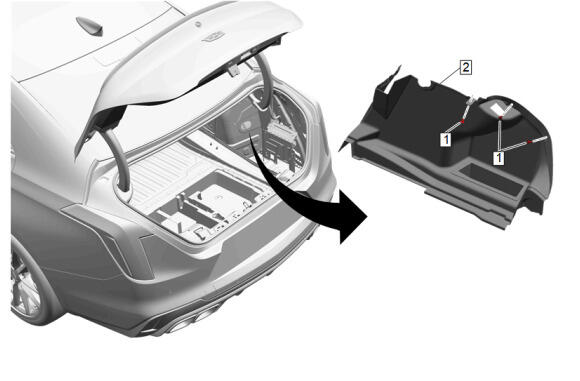

Rear Compartment Side Trim-Right Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [ 3x ]

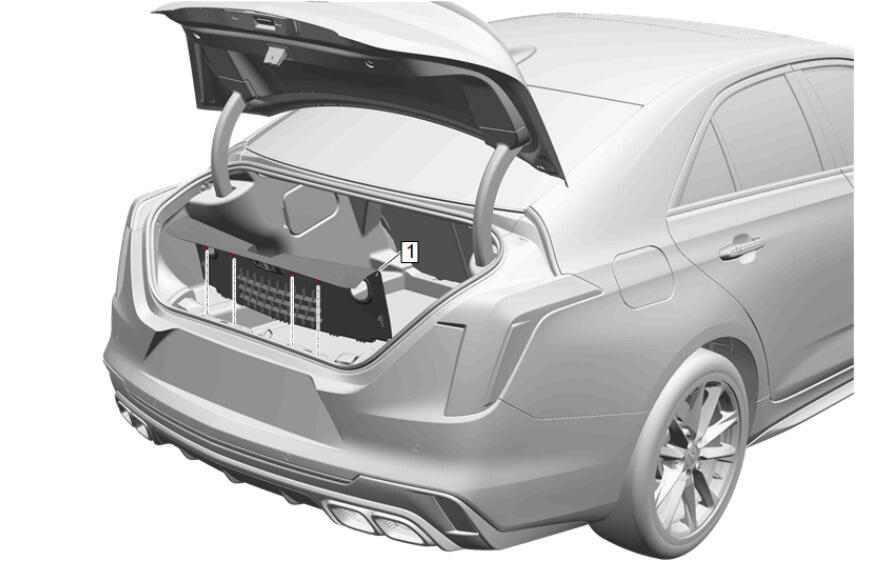

Rear End Trim Finish Panel (1) - Install

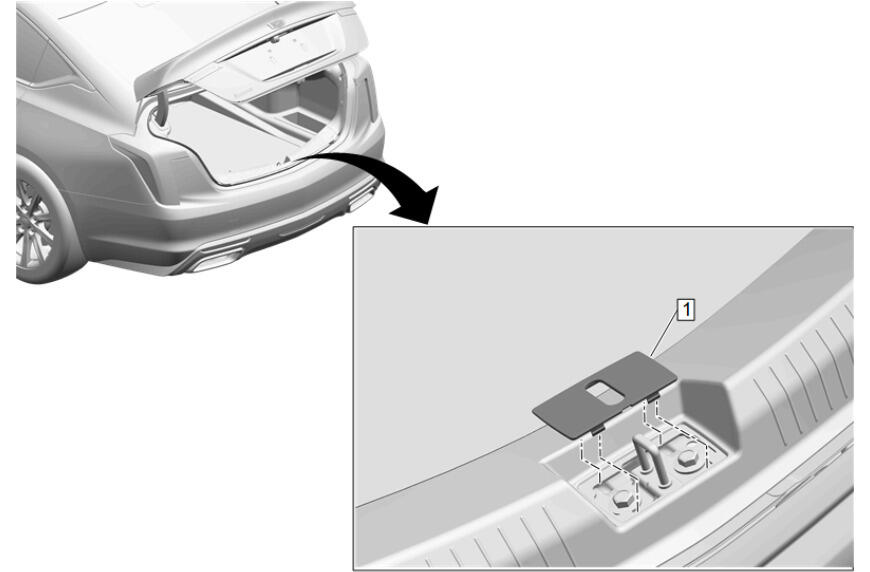

Rear End Trim Finish Panel Opening Cover (1) - Install

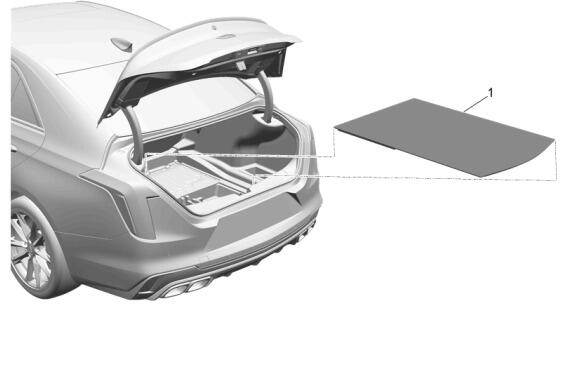

Rear Compartment Floor Panel Trim (1) - Install

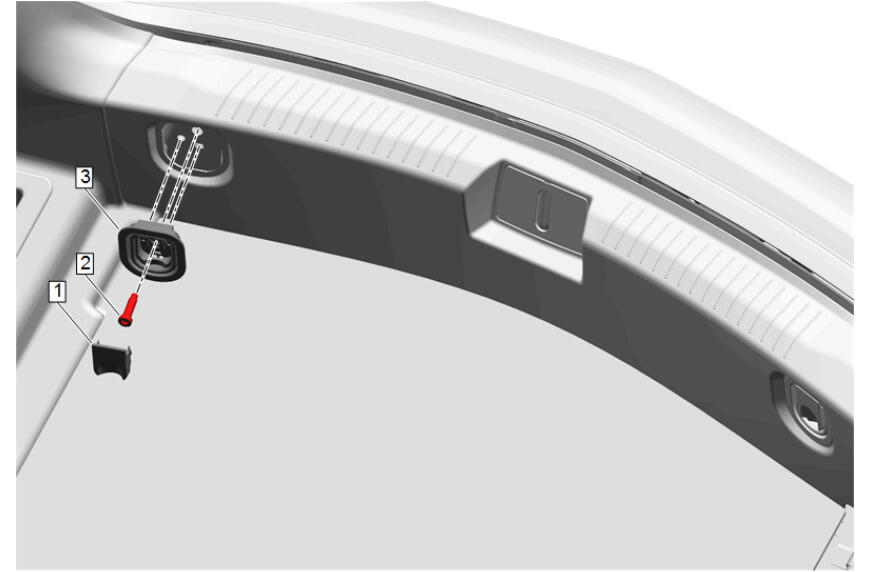

Cargo Tie Down Loop (3) - Install [ 2x ]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [ 2x ]
CAUTION:
Refer to Fastener Caution .
