Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

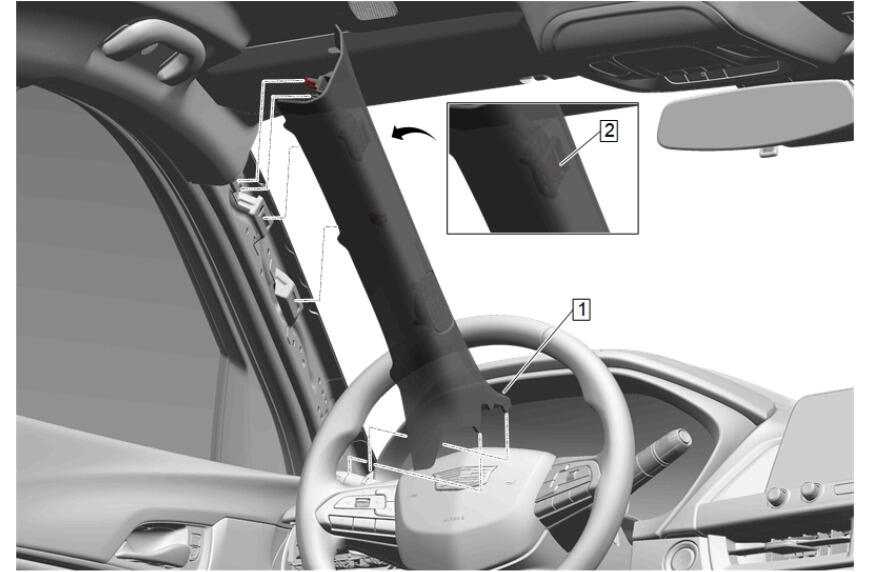

Pull the windshield garnish molding (1) rearwards to release the tether from the A pillar.
Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
Windshield Garnish Molding Bolt (2) - Remove
Disconnect the electrical connector.
Windshield Garnish Molding (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

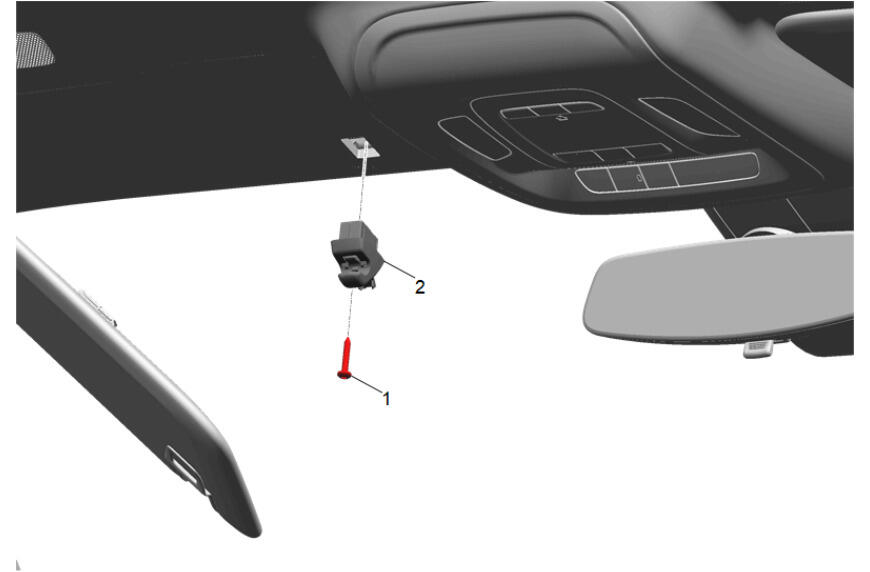

Open the sunshade support bolt access cover with an appropriate tool.
Sunshade Support Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

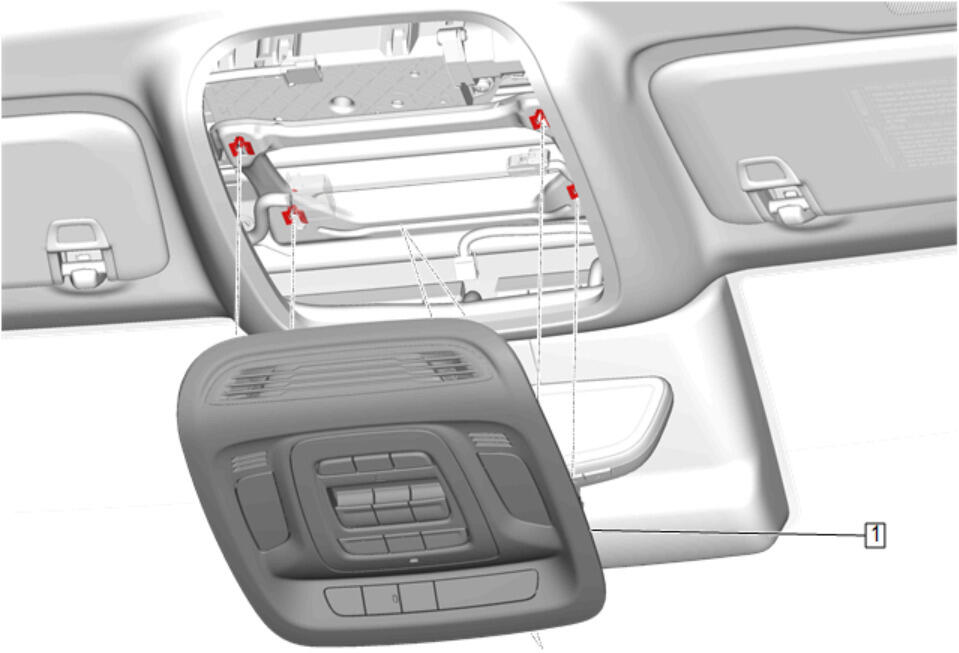

With a flat-bladed trim tool, release the tab on the left side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.
With a flat-bladed trim tool, release the tab on the right side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.
Courtesy of GENERAL MOTORS COMPANY

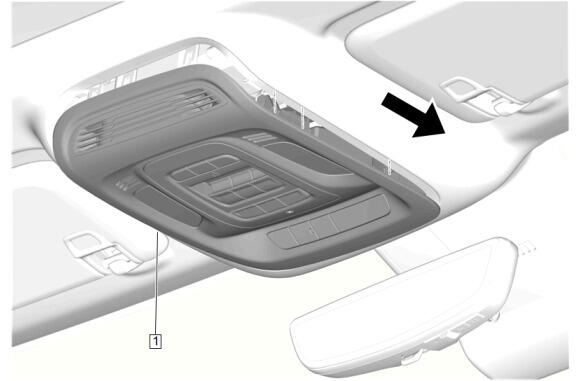

Pull the roof console (1) rearward to remove the front roof console tab from the headliner.
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

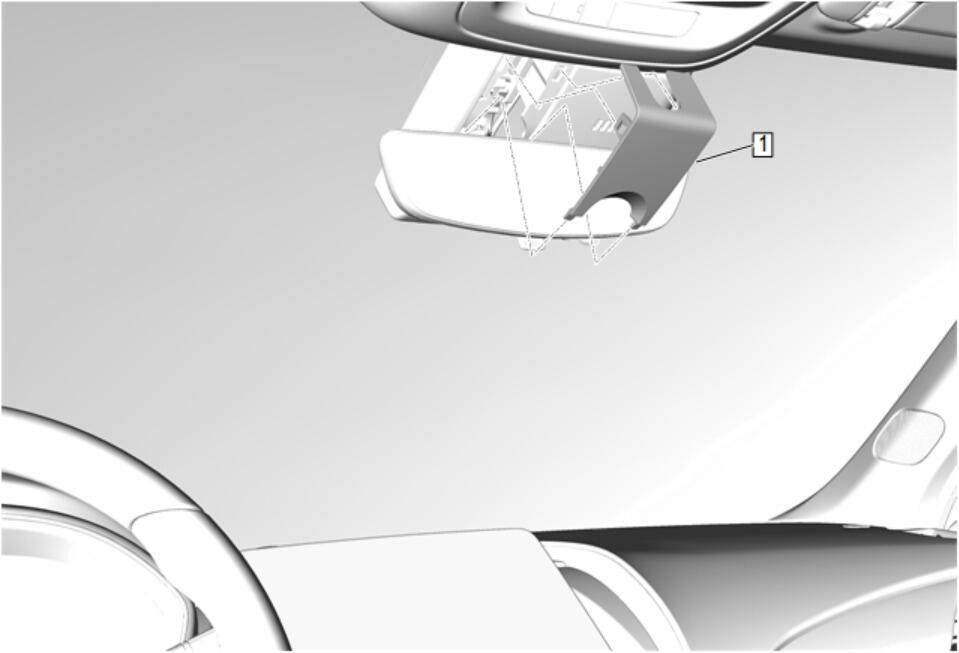

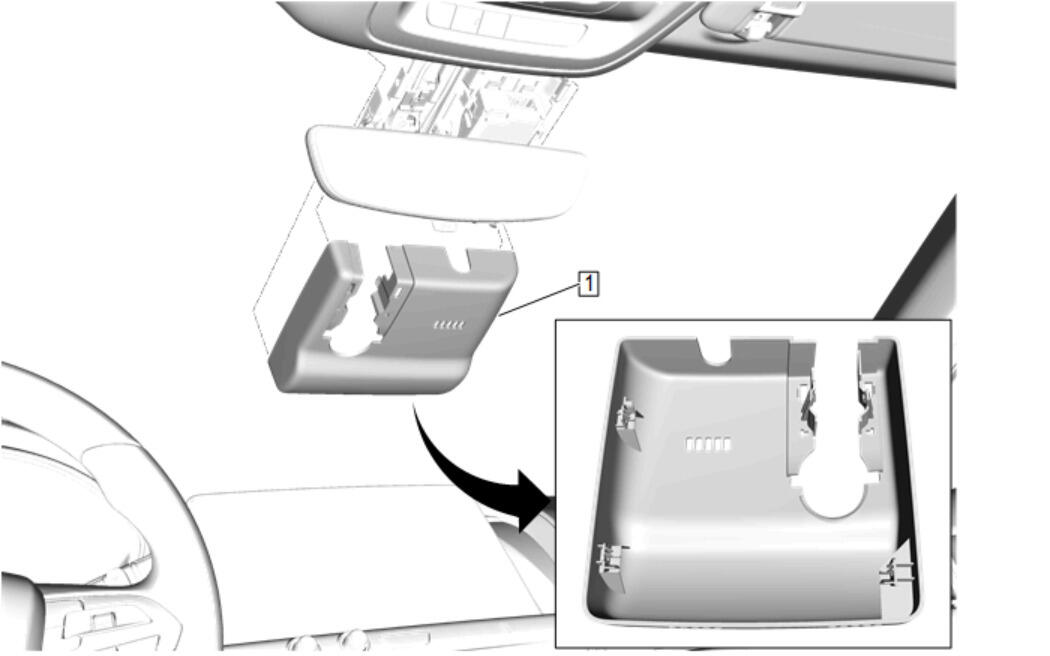

Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.
Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.
Courtesy of GENERAL MOTORS COMPANY

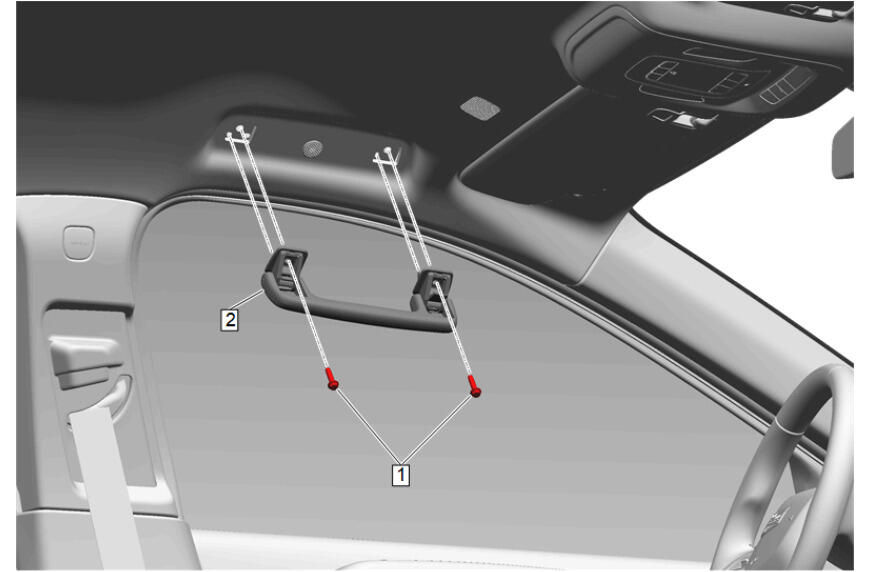

Fold the assist handle downward and hold. (2)
Use a small flat-bladed tool to open the assist handle covers to access the bolts.
Roof Rail Assist Handle Bolt (1) - Remove [ 2x ]
Roof Rail Assist Handle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

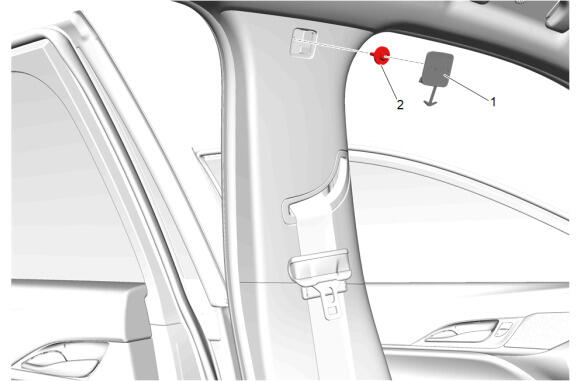

Center Pillar Upper Trim Panel Bolt Cap (1) - Remove
Center Pillar Upper Garnish Molding Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

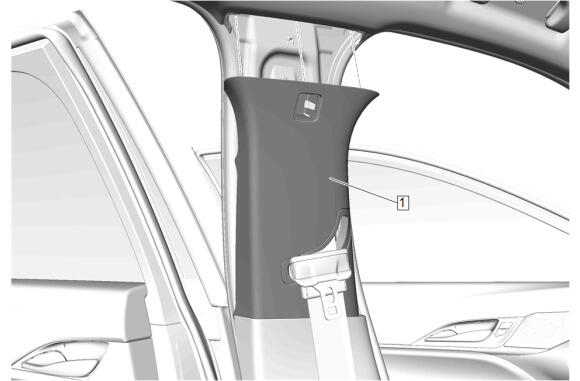

Pull the trim panel toward the inside of the vehicle to disengage the retainers on both sides of the vehicle.
Center Pillar Upper Trim Panel (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

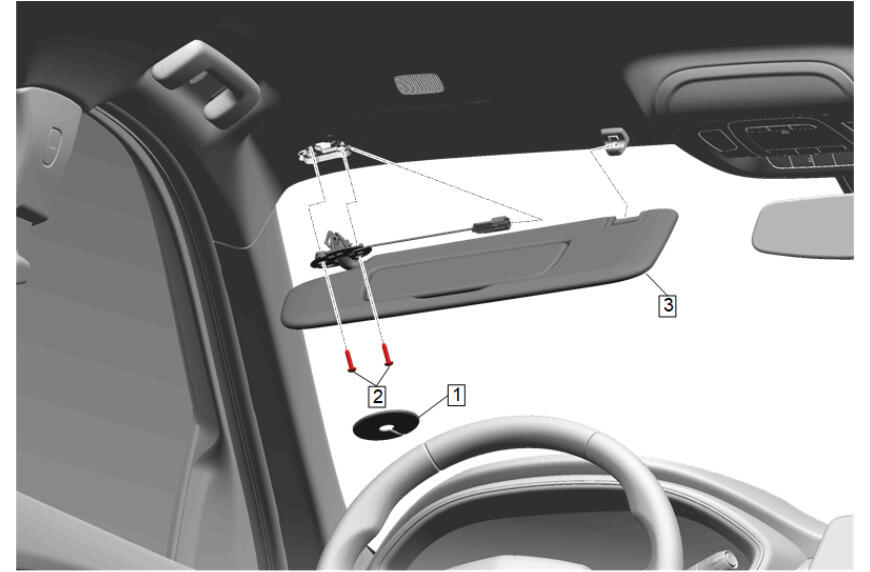

Sunshade Retainer Bolt Cover (1) - Remove
Sunshade Bolt (2) - Remove [ 2x ]
Squeeze the tabs at the base of the sunshade to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.
Courtesy of GENERAL MOTORS COMPANY

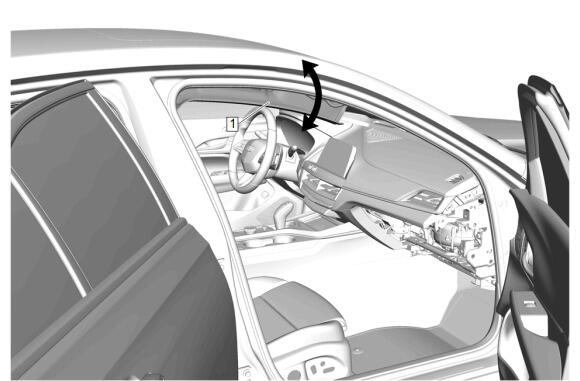

Lower the right front section of the headlining trim panel (1).
Courtesy of GENERAL MOTORS COMPANY

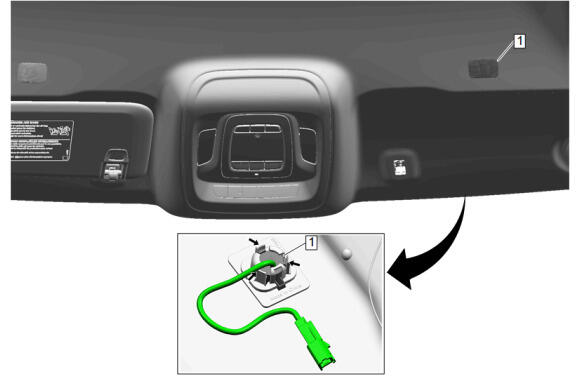

Disconnect the electrical connector.
Unlock the retaining tabs.
Communication Interface Module Microphone (1) - Remove
