Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

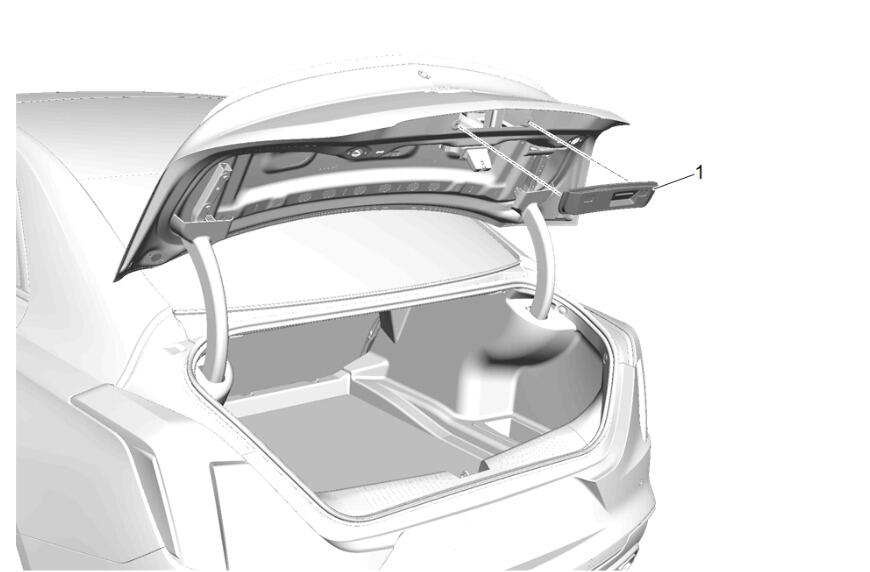

Rear License Plate Lamp Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Secure the retaining tabs on the rear license plate lamp module (1).
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

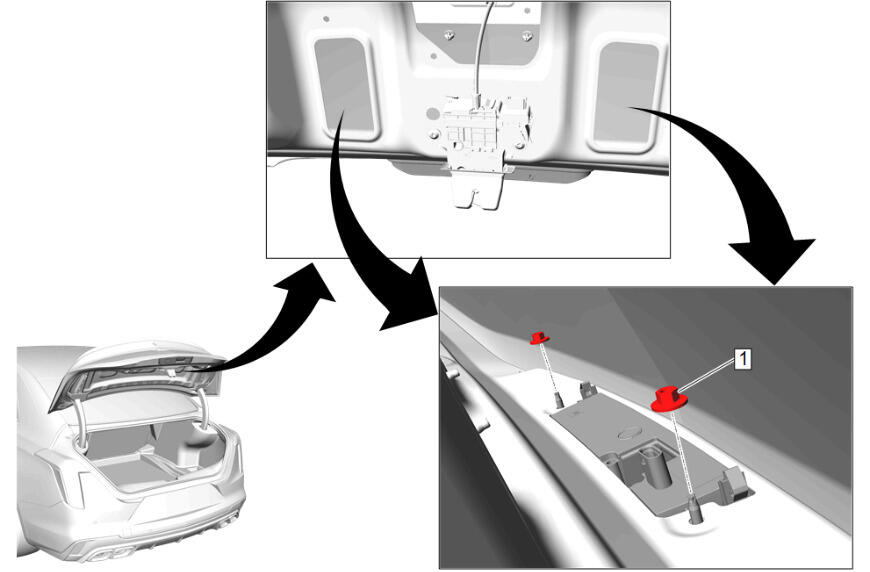

Rear License Plate Lamp Module Lamp Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim.

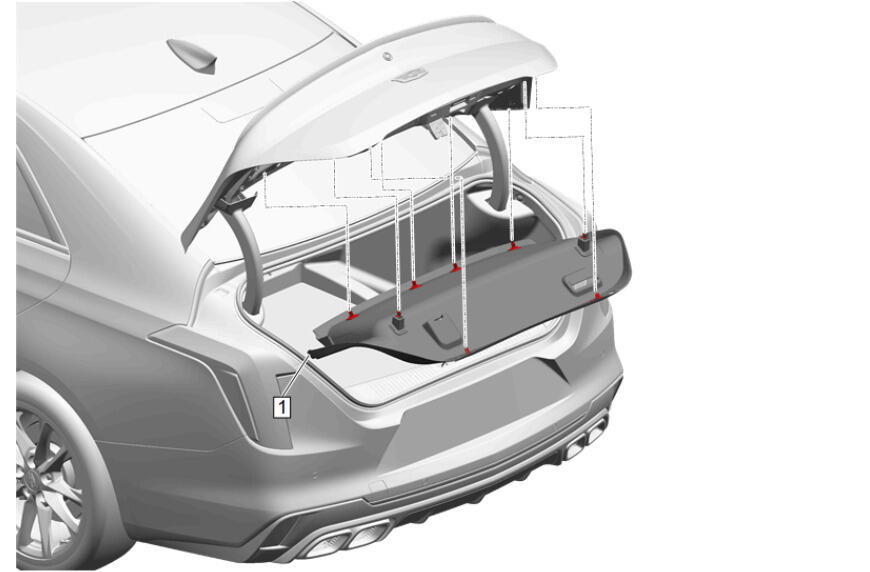

Rear Compartment Lid Inner Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

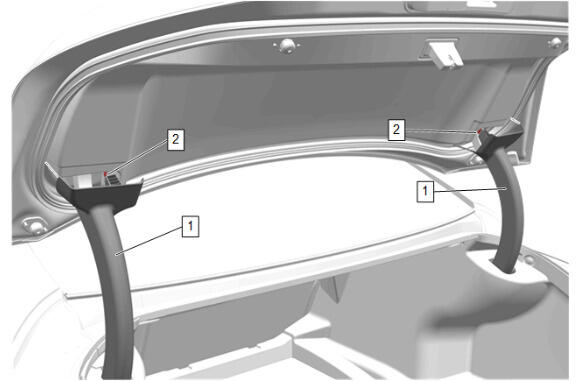

Rear Compartment Lid Hinge Cover (1) - Reposition [2x]
Courtesy of GENERAL MOTORS COMPANY

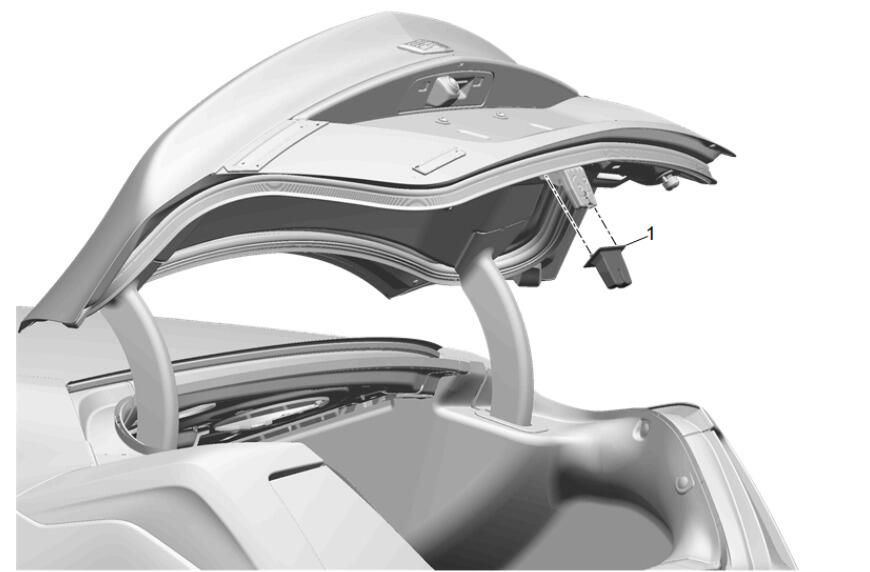

Rear Compartment Lid Latch Cover (1) - Install
