Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

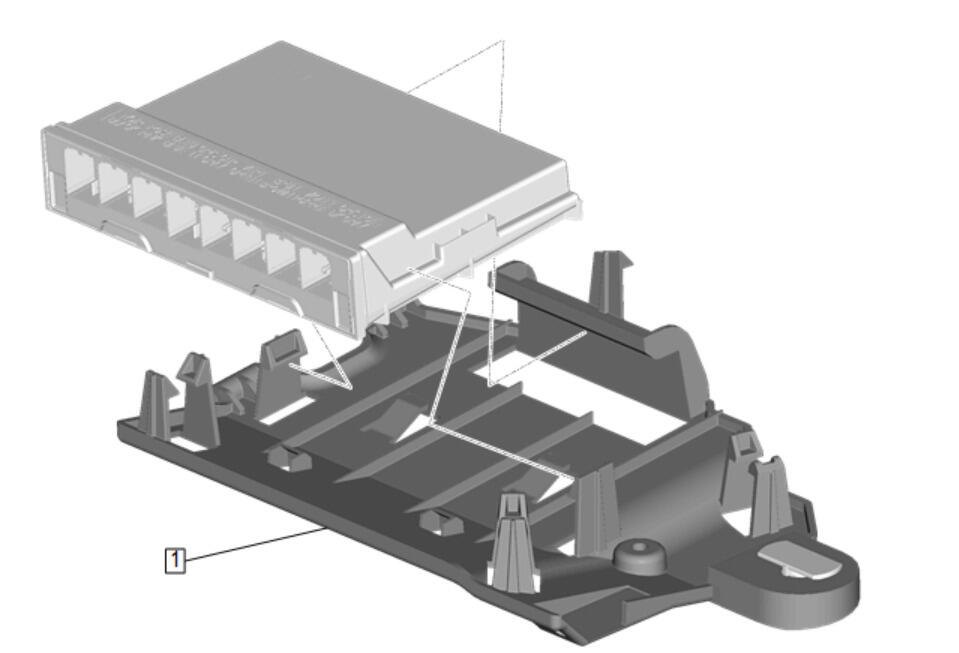

Install the body control module to the body control module bracket (1).
Courtesy of GENERAL MOTORS COMPANY

Connect and position the wiring harness.

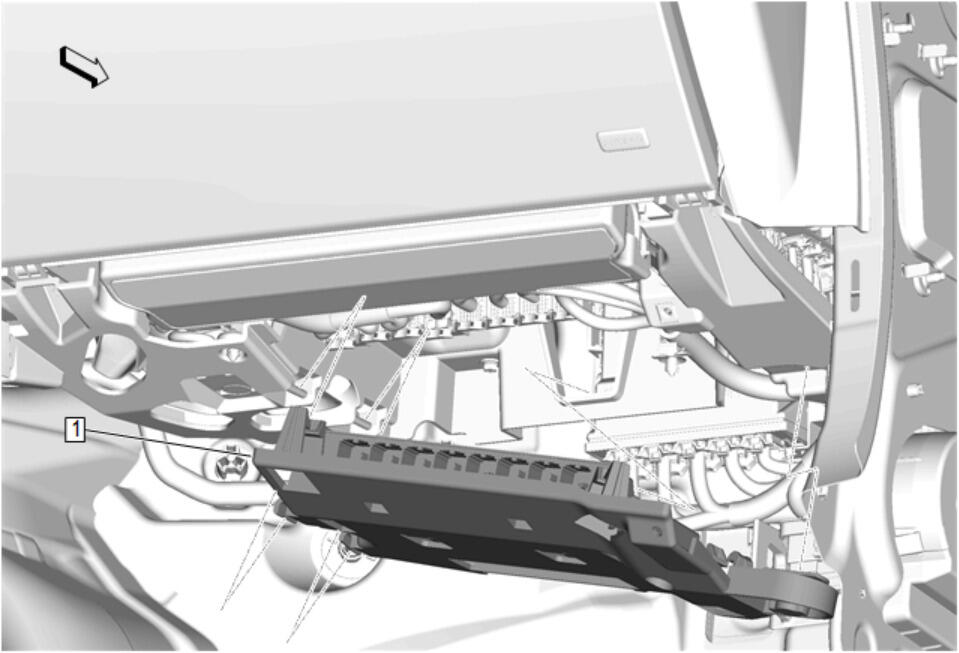

Body Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.

CAUTION:

Refer to Fastener Caution .

Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Clear DTCs
