Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

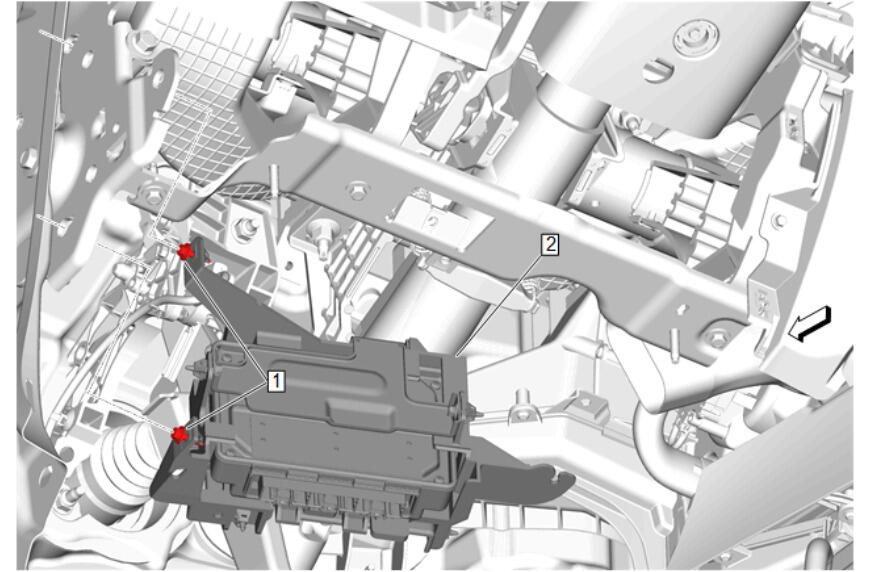

  1. GM5454443Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (2) - Install

  2. CAUTION:

    Refer to Fastener Caution .

  3. Serial Data Gateway Module Bracket Bolt (1) - Tighten [ 2x ]- Fastener Specifications
  4. Connect and position the wiring harness.
  5. GM5454224Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

    Connect the electrical connectors. (1)

  6. Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
  7. GM5454049Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  8. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 3x ]- Fastener Specifications

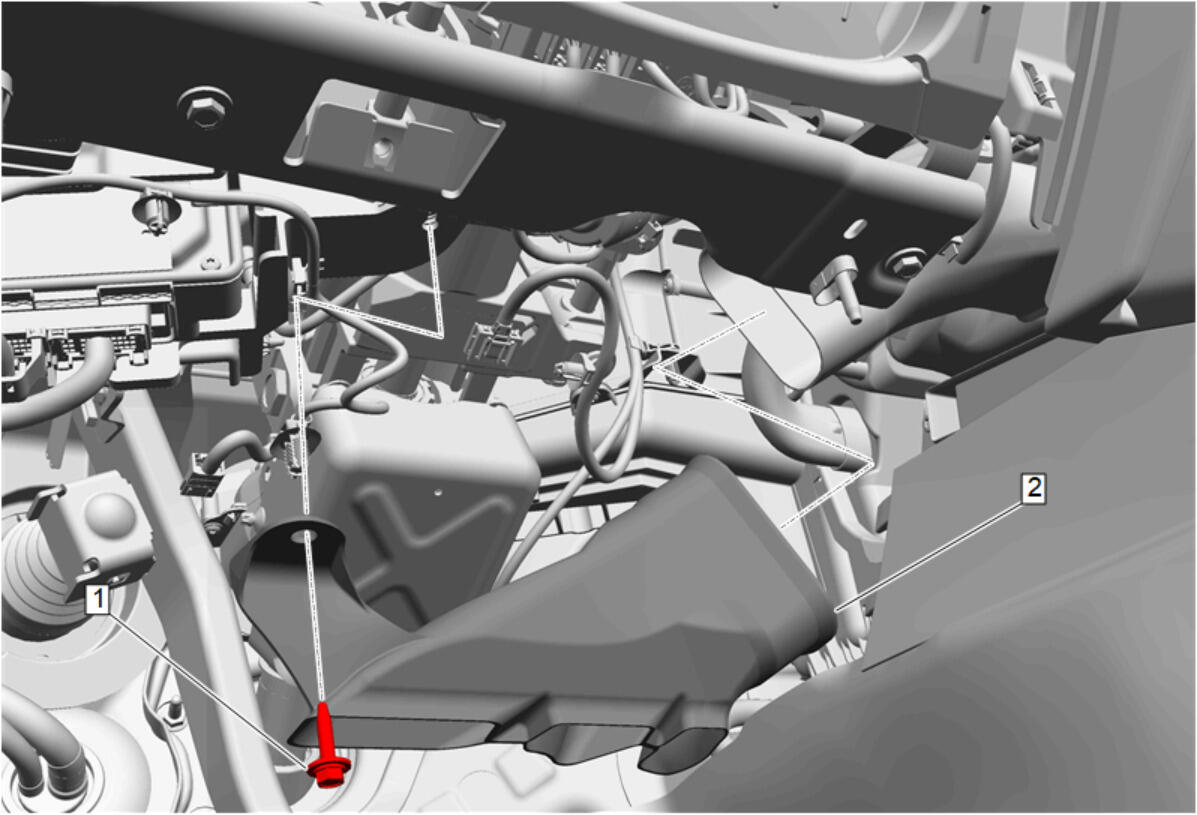

  9. GM5325852Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side Outer (2) - Install

  10. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  11. Instrument Panel Knee Bolster (1) - Install
  12. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [ 2x ]- Fastener Specifications

  13. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [ 3x ]- Fastener Specifications
  14. Connect the electrical connector.
  15. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  16. Instrument Panel Center Trim Pad (1) - Install
  17. Return the steering column to its original position.
  18. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Instrument Panel Lower Trim Panel Insulator (1) - Install
  20. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  21. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  22. Instrument Panel Insulator Bolt (2) - Install and tighten [ 2x ]- Fastener Specifications
  23. Instrument Panel Insulator Nut (3) - Install and tighten [ 2x ]- Fastener Specifications
  24. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  25. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  26. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  27. Instrument Panel Lower Airbag - Driver Side (2) - Install
  28. Instrument Panel Lower Airbag Nut (1) - Install and tighten [ 2x ]- Fastener Specifications
  29. Enable the SIR System. SIR Disabling and Enabling .
  30. Perform the necessary programming and setup procedure:Control Module References
