Transmission Fluid Cooler Outlet Pipe Replacement (with V08): Notes

  1. Place a drain pan under the vehicle.
  2. GM4582789Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (3) - Remove - Battery Tray Replacement

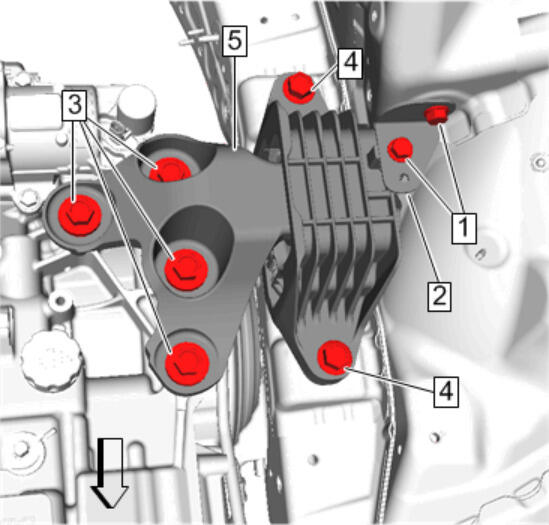

  3. GM4691155Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount-Left Side (5) - Remove - Transmission Mount Replacement (Front) , or Transmission Mount Replacement (Left)

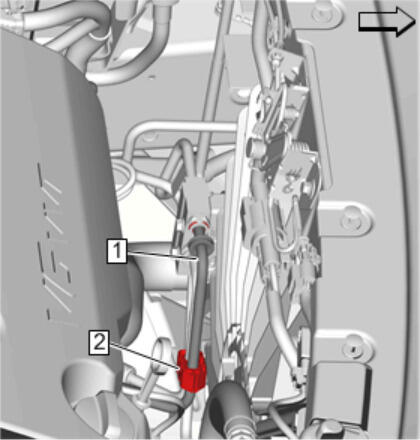

  4. GM4755799Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

    Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Cooler Thermal Bypass Valve - Disconnect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

  5. Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Cooler Outlet Pipe Clip (2) - Unclip

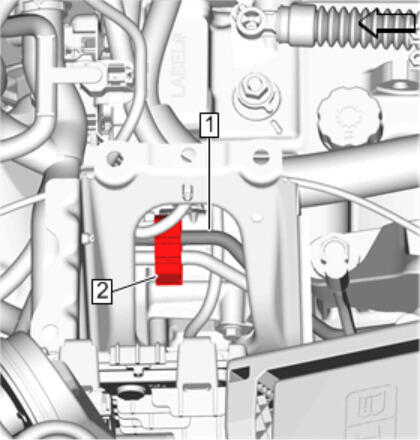

  6. GM4755798Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Outlet Pipe (1) @ Transmission - Unclip

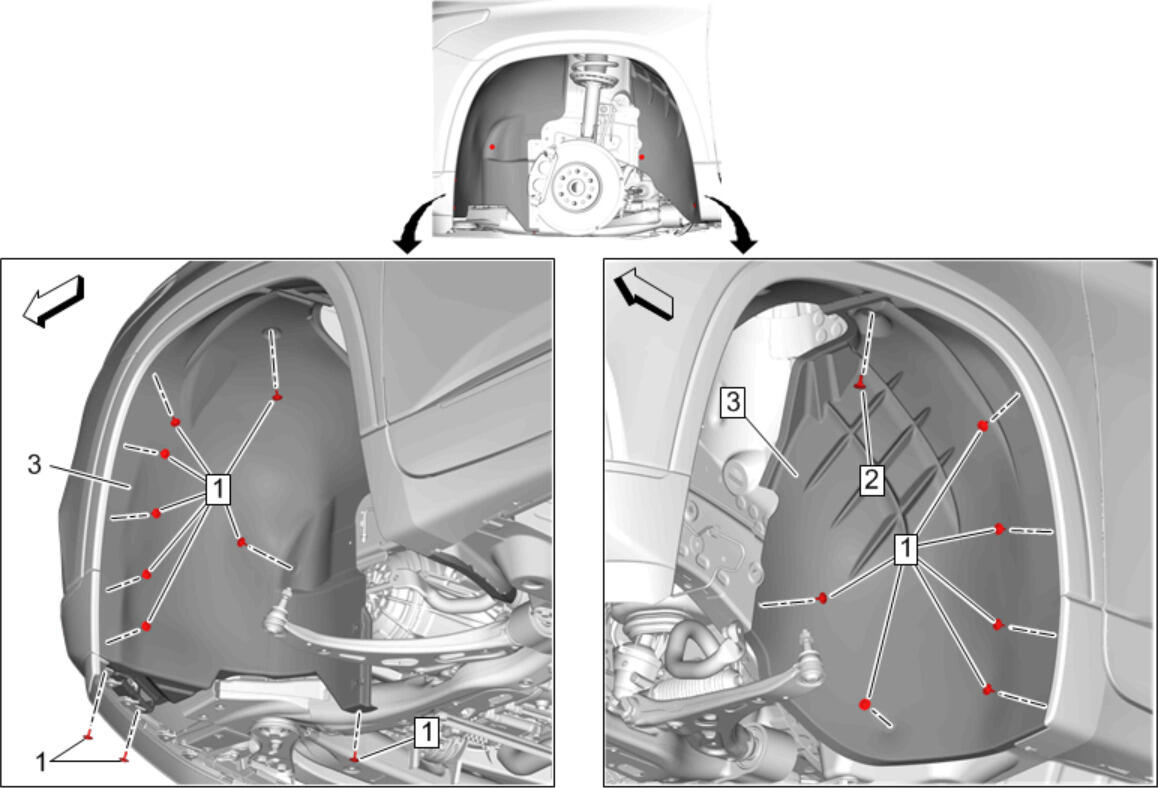

  7. GM4755150Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner-Left Side (3) - Remove - Front Wheelhouse Liner Replacement

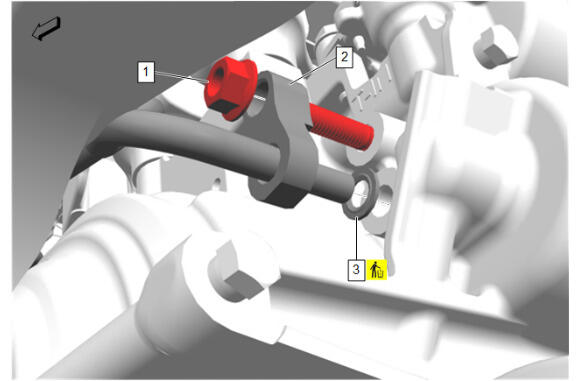

  8. GM4665630Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Outlet Pipe Nut (1) @ Transmission - Remove

  9. Transmission Fluid Cooler Outlet Pipe (2) @ Transmission - Remove
  10. Transmission Fluid Cooler Outlet Pipe Seal (3) @ Transmission - Remove and DISCARD
  11. Remove the transmission fluid cooler outlet pipe (2) from vehicle.
