Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

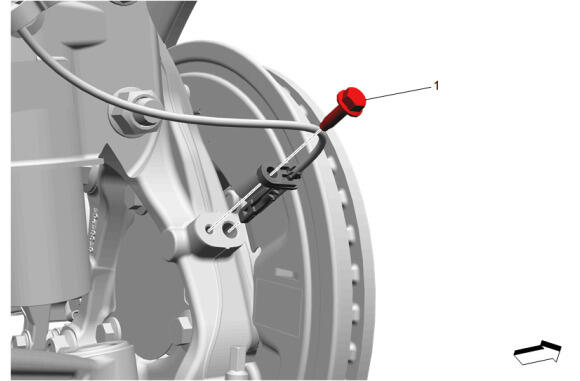

Front Wheel Speed Sensor Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Speed Sensor Bolt | - | - | 9 (80 lb in) | Front Wheel Speed Sensor Replacement |

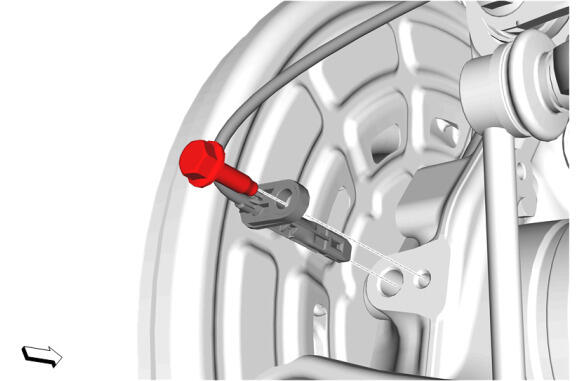

Rear Wheel Speed Sensor Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Speed Sensor Bolt | - | - | 9 (80 lb in) | Rear Wheel Speed Sensor Replacement |
Vehicle Stability Control System Switch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Auxiliary Multifunction Switch Bolt [3x] | - | - | 1 (9 lb in) | Vehicle Stability Control System Switch Replacement (M5N) Vehicle Stability Control System Switch Replacement (MQA) |
