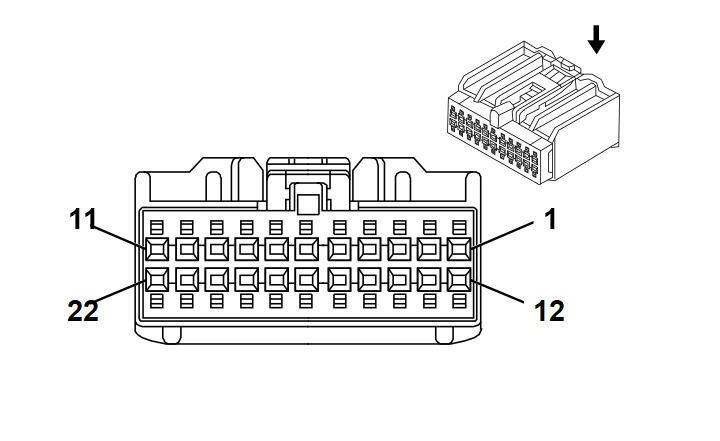

A98 Front Overhead Console Assembly
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13504097
- Service Connector: 13504097
- Description: 22-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / BU |
3940 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
WH / YE |
7557 |
Interior Door Handle Accent Lighting Control |
I |
- |
| 3 |
0.35 |
GY |
156 |
Courtesy Lamp Switch Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BK / WH |
1751 |
Signal Ground |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
WH / BN |
6815 |
Inadvertent Load Control |
I |
- |
| 8 |
0.35 |
GY |
157 |
Interior Lamp Control |
I |
- |
| 9 |
0.35 |
BU / VT |
5027 |
Sunroof Switch Serial Data 1 Signal |
I |
C3U |
| 10 |
0.5 |
GN / YE |
3302 |
Rear Sunshade Switch Signal |
I |
C3U |
| 11 |
0.35 |
GN |
2308 |
Passenger Air Bag Off Indicator Control |
I |
- |
| 12 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
- |
| 13 |
0.35 |
VT / WH |
5234 |
Passenger Seat Belt Indicator Control |
I |
- |
| 14 |
0.35 |
BN / WH |
2517 |
Telematics Switch Red LED Indicator Control |
I |
(UE1/UER) |
| 15 |
0.35 |
YE / VT |
2516 |
Telematics Switch Green LED Indicator Control |
I |
(UE1/UER) |
| 16 |
0.35 |
GN / BK |
2515 |
Telematics Switch Supply Voltage |
I |
(UE1/UER) |
| 17 |
0.35 |
GN / WH |
2514 |
Telematics Switch Signal |
I |
(UE1/UER) |
| 18 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 19 |
0.35 |
BU / GY |
4672 |
Dome Lamp Off Indicator Control |
I |
- |
| 20 |
0.35 |
BK / GY |
128 |
Sunroof Switch Low Reference |
I |
C3U |
| 21 |
0.35 |
GY / GN |
328 |
Interior Lamp Defeat Switch Signal |
I |
- |
| 22 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
UG1 |
