K157 Video Processing Control Module X3 (UV2)
 Courtesy of GENERAL MOTORS COMPANY
|

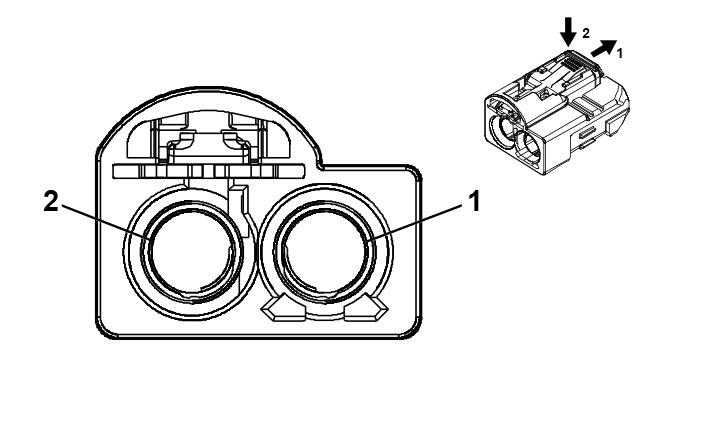

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 13515664
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (RD)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| C1 |
0.1 |
BN / BU |
2574 |
Combined Camera Video Signal 2 [+] |
I |
UV2 |
| C2 |
0.1 |
GY / YE |
6972 |
Rearview Camera Signal [+] |
I |
UV2 |
| S1 |
0.35 |
GY / BU |
2575 |
Combined Camera Video Signal 2 [-] |
I |
UV2 |
| S2 |
0.35 |
WH / BU |
6973 |
Rearview Camera Signal [-] |
I |
UV2 |
