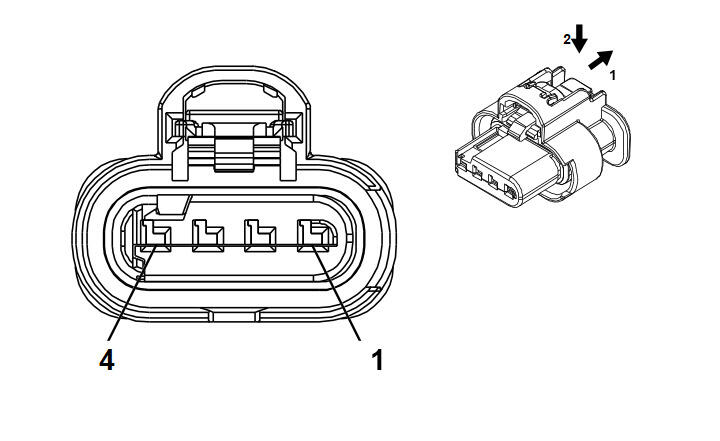

K171 Hands-Free Liftgate Sensor Control Module X1 (TC2)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 13514090
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / WH |
151 |
Signal Ground |
I |
TC2+UKC |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
GN / BN |
4118 |
Liftgate Control Module LIN Bus 1 |
I |
TC2 |
| 4 |
0.5 |
RD / WH |
1340 |
Battery Positive Voltage |
I |
TC2 |
