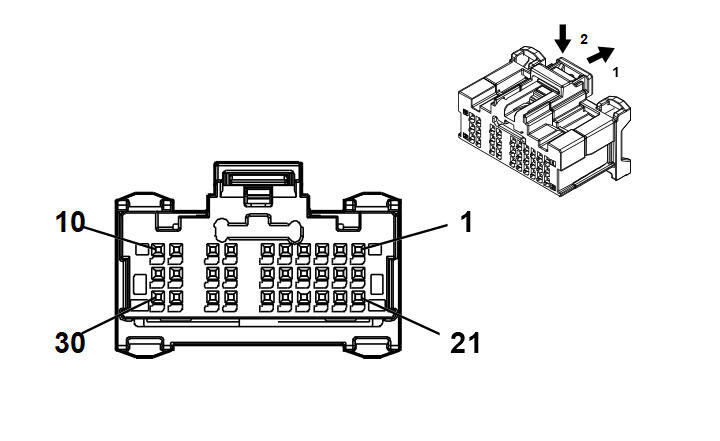

K56 Serial Data Gateway Module X2

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.35	BU / VT	3813	High Speed GMLAN Serial Data [+] 4	I	UGN
3	0.35	WH	3811	High Speed GMLAN Serial Data [-] 4	I	UGN
4	0.35	BU	2500	High Speed GMLAN Serial Data [+] 1	I	-
5	0.35	WH	2501	High Speed GMLAN Serial Data [-] 1	I	-
6	0.35	VT	3935	High Speed GMLAN Serial Data [+] 8	I	UGN
7	0.35	VT / WH	3936	High Speed GMLAN Serial Data [-] 8	I	UGN
8	0.35	GN	6105	High Speed GMLAN Serial Data [+] 2	I	-
9	0.35	YE	6106	High Speed GMLAN Serial Data [-] 2	I	-
10	-	-	-	Not Occupied	-	-
11	0.35	GN	5060	Low Speed GMLAN Serial Data	I	-
12 - 13	-	-	-	Not Occupied	-	-
14	0.35	BU / BK	2500	High Speed GMLAN Serial Data [+] 1	I	-
15	0.35	WH / BK	2501	High Speed GMLAN Serial Data [-] 1	I	-
16	0.35	BU / GY	3935	High Speed GMLAN Serial Data [+] 8	I	UGN
17	0.35	WH / GY	3936	High Speed GMLAN Serial Data [-] 8	I	UGN
18	0.35	BU / YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
19	0.35	WH / BK	6106	High Speed GMLAN Serial Data [-] 2	I	-
20 - 22	-	-	-	Not Occupied	-	-
23	0.35	VT / GN	39	Run/Crank Ignition 1 Voltage	I	-
24	-	-	-	Not Occupied	-	-
25	0.35	WH / BU	5986	Serial Data Communication Enable	I	-
26 - 30	-	-	-	Not Occupied	-	-
