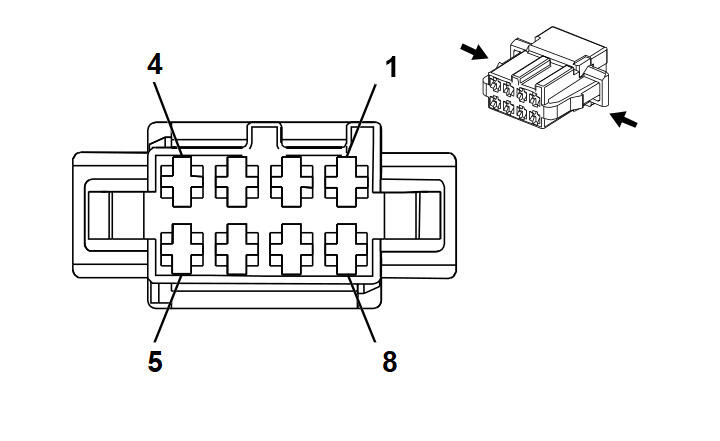

K60 Steering Column Lock Module
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 24466119
- Service Connector: 13576545
- Description: 8-Way F 1.6 Micro-Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
BU / WH |
5904 |
Steering Column Lock Status Signal |
I |
N06 |
| 3 |
0.35 |
BU / VT |
807 |
Ignition Off/Accessory Ignition Voltage |
I |
N06 |
| 4 |
0.35 |
GN / VT |
1601 |
Steering Column Lock Signal |
I |
N06 |
| 5 |
0.35 |
RD / GY |
4140 |
Battery Positive Voltage |
I |
N06 |
| 6 |
0.35 |
BK |
1750 |
Ground |
I |
N06 |
| 7 |
0.35 |
BK / WH |
1751 |
Signal Ground |
I |
N06 |
| 8 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
N06 |
