Output Carrier Transfer Drive Gear Hub Assembly

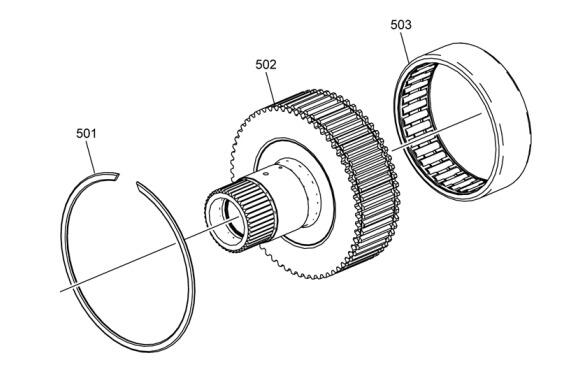

Fig 1: Exploded View Of Output Carrier Transfer Drive Gear Hub Assembly Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
500
Reaction Sun Gear Thrust Bearing
501
Drive Sprocket Retaining Ring
502
Output Carrier Transfer Drive Gear Hub
503
Output Carrier Hub Bearing
