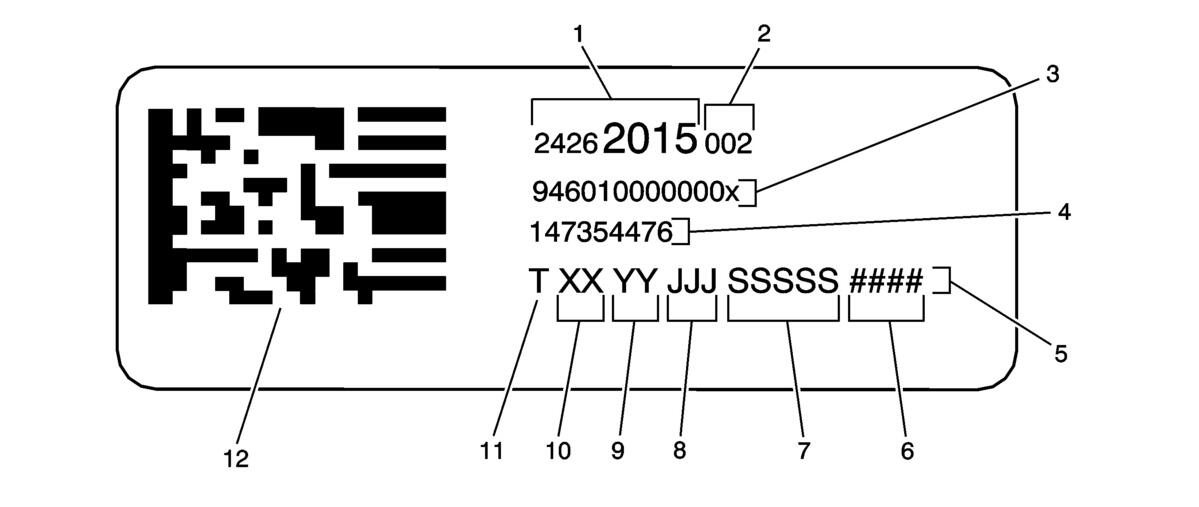

Transfer Case Primary Identification Label

GM4200099Courtesy of GENERAL MOTORS COMPANY
  1. GM Part Number
  2. GM Revision Level
  3. VPPS
  4. DUNS Number
  5. Trace Code
  6. Shift Sequence Number
  7. Broadcast Code
  8. Julian Date
  9. Manufactured/Assembled Year
  10. Plant and Shift Location
  11. GM Data Identifier
  12. Bar Code
