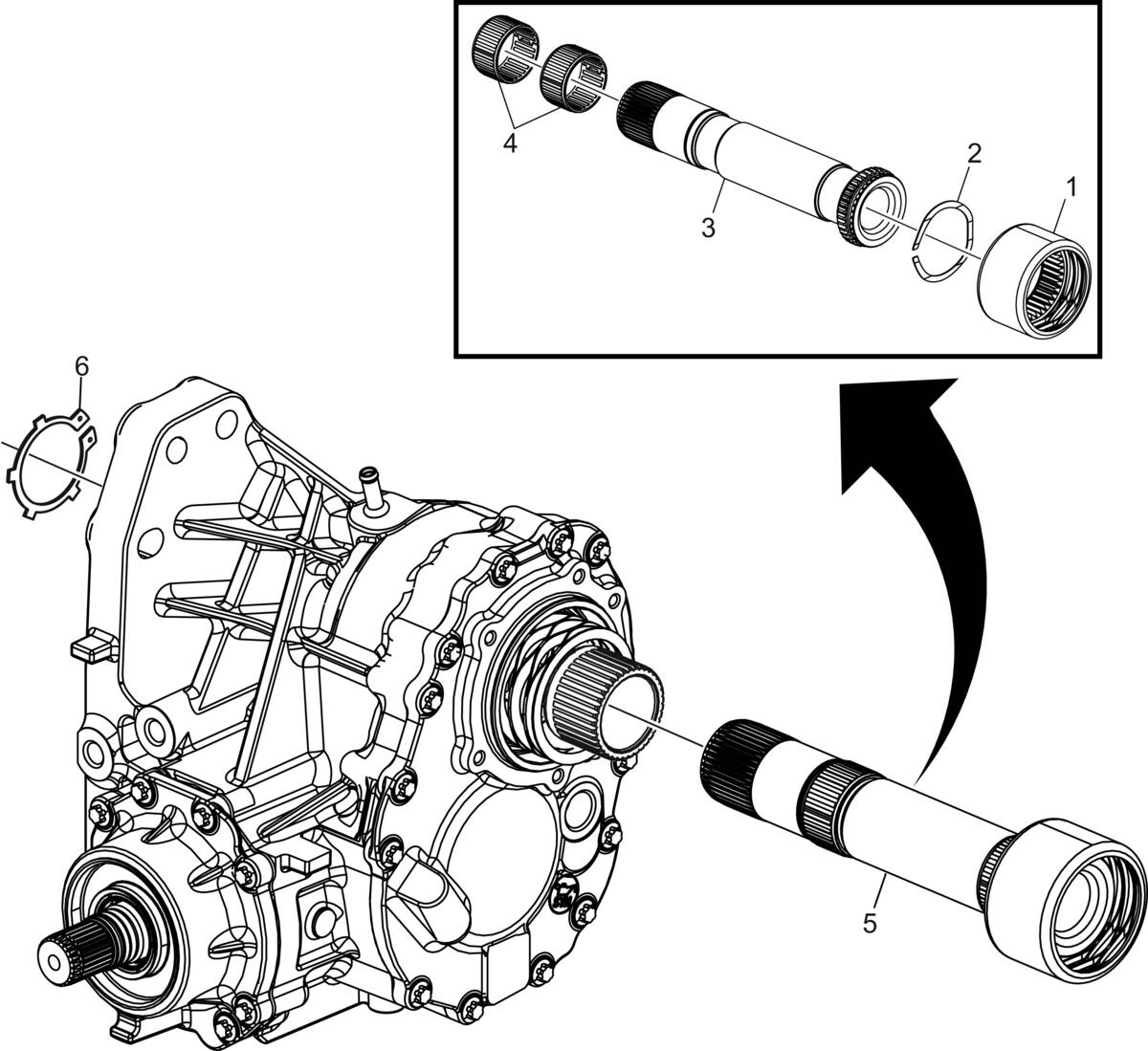

Power Transfer Unit Input Shaft Assembly Installation
Power Transfer Unit Input Shaft Assembly Installation
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Shift Sleeve Procedure Assemble the sleeve onto the input shaft with the spring end of sleeve facing away from shaft. |
| 2 | Power Transfer Unit Wave Ring |
| 3 | Power Transfer Unit Input Disconnect Shaft |
| 4 | Input Disconnect Shaft Needle BeaRing [ 2x ] |
| 5 | Power Transfer Unit Input Shaft Assembly |
| 6 | Power Transfer Input Shaft Clip |
