Driver Mode Control

Driver Mode Control has the following modes: Tour, Sport, and All-Wheel Drive (AWD). Change MODE on the switch to make a mode selection. The first change of the switch will show the current mode in the instrument cluster. Continue changing through the available modes

If the vehicle is in Tour or Sport Mode when the engine is turned off, Driver Mode Control will come on in Tour Mode at the next ignition cycle.

If the vehicle is put in AWD Mode, it will remain in AWD through future ignition cycles, until a different mode is selected. When AWD Mode, the light will come on in the AWD indicator below the MODE switch. The indicator light will turn off when Tour Mode is selected.

Look in Owner's Manual for more specific information on the operating system for each vehicle.

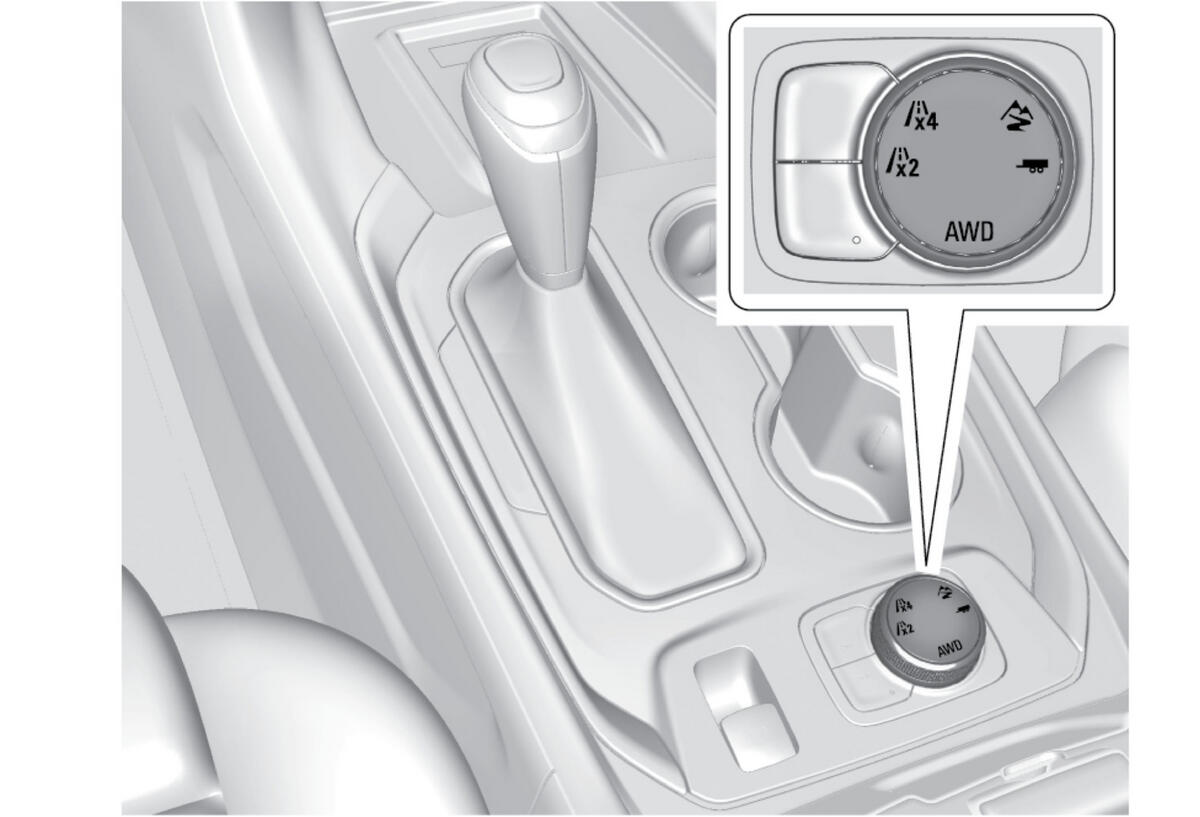

Driver Mode Control Switch

GM5138646Courtesy of GENERAL MOTORS COMPANY
