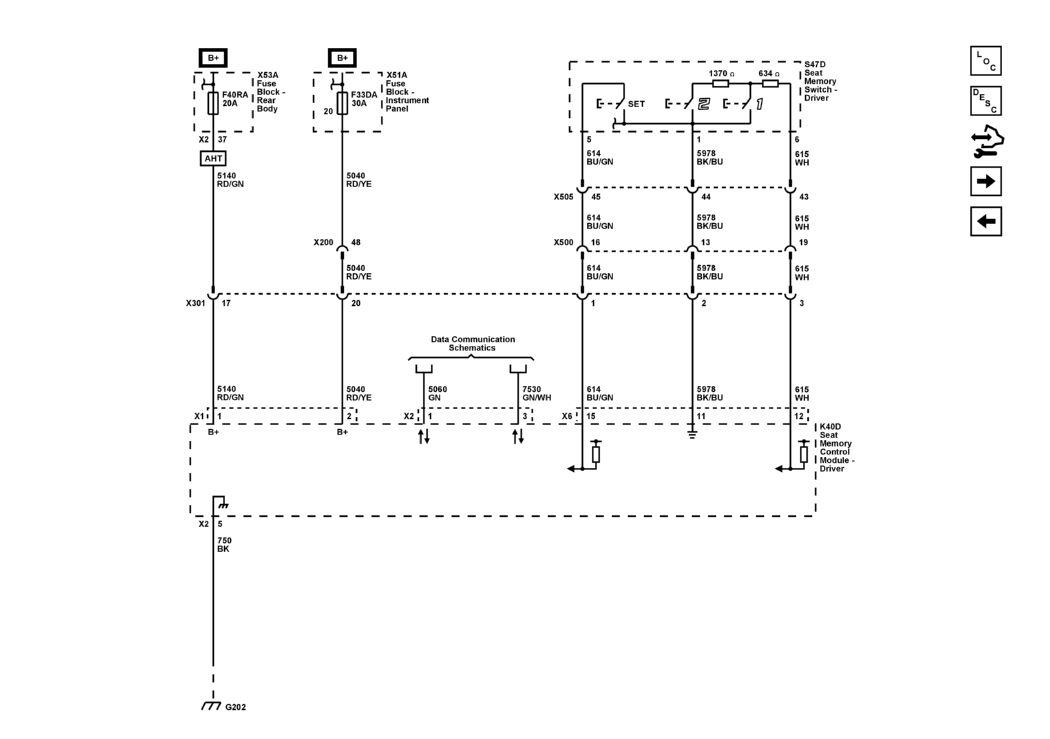

Module Power, Ground, Serial Data, and Memory Controls (AAB)

GM5699553Courtesy of GENERAL MOTORS COMPANY
