K32 Steering Wheel Heating Control Module X1 (UVD)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

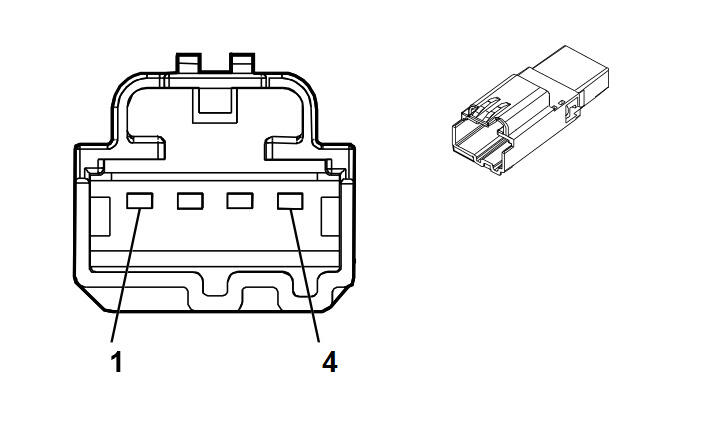

Connector Part Information
- Harness Type:Steering Wheel Harness
- OEM Connector: 31068-1040
- Service Connector: Service by Harness - See Part Catalog
- Description: 4 -Way M 0.64 H-DAC Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE / RD |
5885 |
Steering Wheel Heating Voltage Reference |
I |
UVD |
| 2 |
0.35 |
VT / BU |
5886 |
Steering Wheel Heating Temperature Sensor Signal |
I |
UVD |
| 3 |
0.75 |
WH / YE |
5888 |
Steering Wheel Heating High Control |
I |
UVD |
| 4 |
0.75 |
GY / BK |
5587 |
Hybrid/EV Battery Cell Voltage Signal 28 |
I |
UVD |
