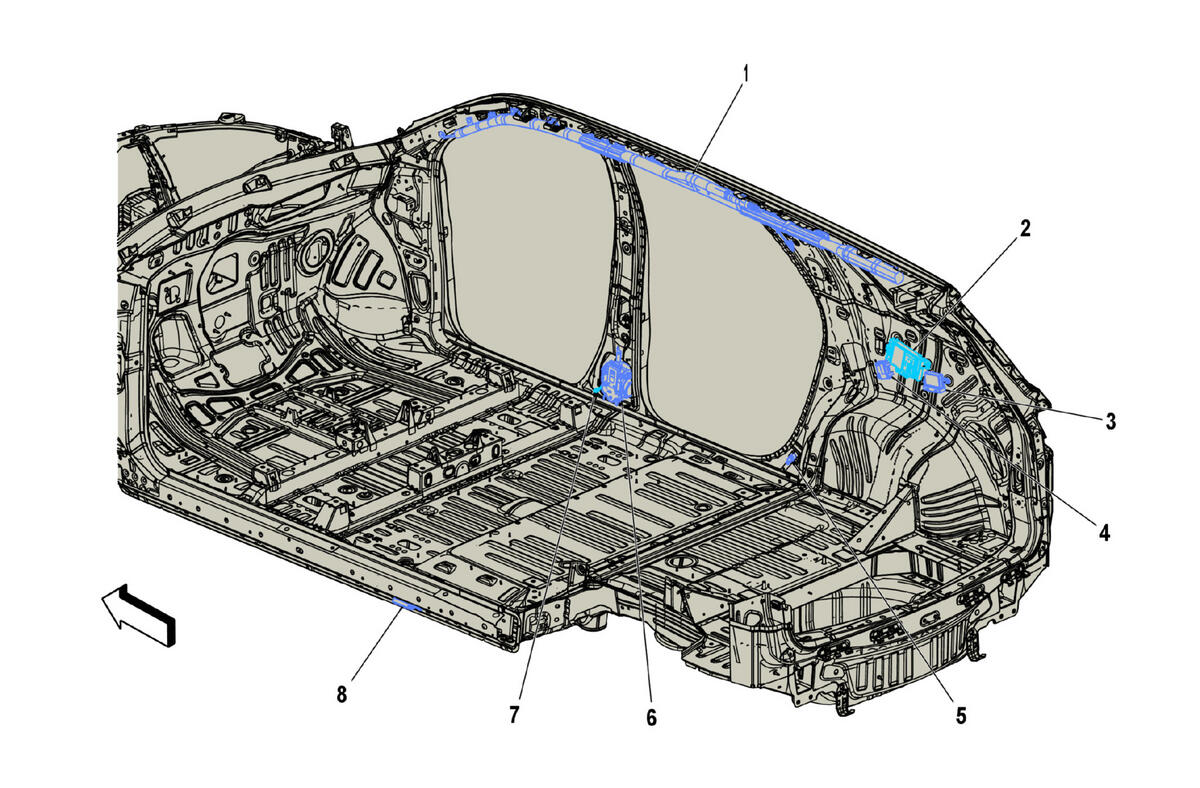

Right Side of Passenger Compartment Components
Right Side of Passenger Compartment Components
| Component Name | Callout |
|---|---|
| F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right | 1 |
| K124 Active Safety Control Module (UGN) K124 Active Safety Control Module X1 (UGN) , or K124 Active Safety Control Module X2 (UGN) | 2 |
| K182 Parking Assist Control Module K182 Parking Assist Control Module X1 (UD7) , or K182 Parking Assist Control Module X2 (UD7) | 3 |
| K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver | 4 |
| B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear | 5 |
| F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger | 6 |
| B61P Seat Belt Tension Sensor - Passenger B61P Seat Belt Tension Sensor - Passenger | 7 |
| T10L Keyless Entry Antenna - Left Body | 8 |
