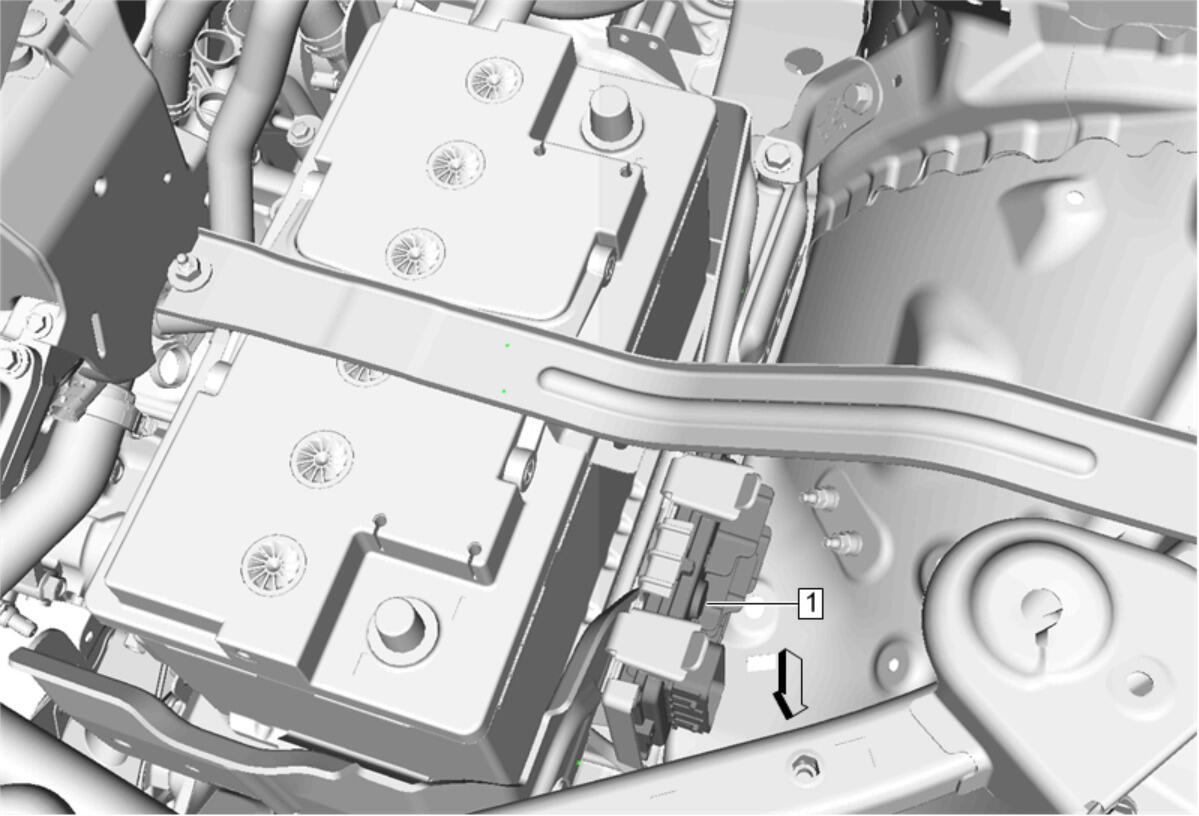

Transmission Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Transmission Control Module
Procedure
Disconnect the electrical connector.
Remove the module from the module bracket by releasing the retaining tabs.
Reprogram the transmission.
Q77 Transmission Control Solenoid Valve Characterization Programming
