Low Frequency Rear Bumper Antenna Replacement

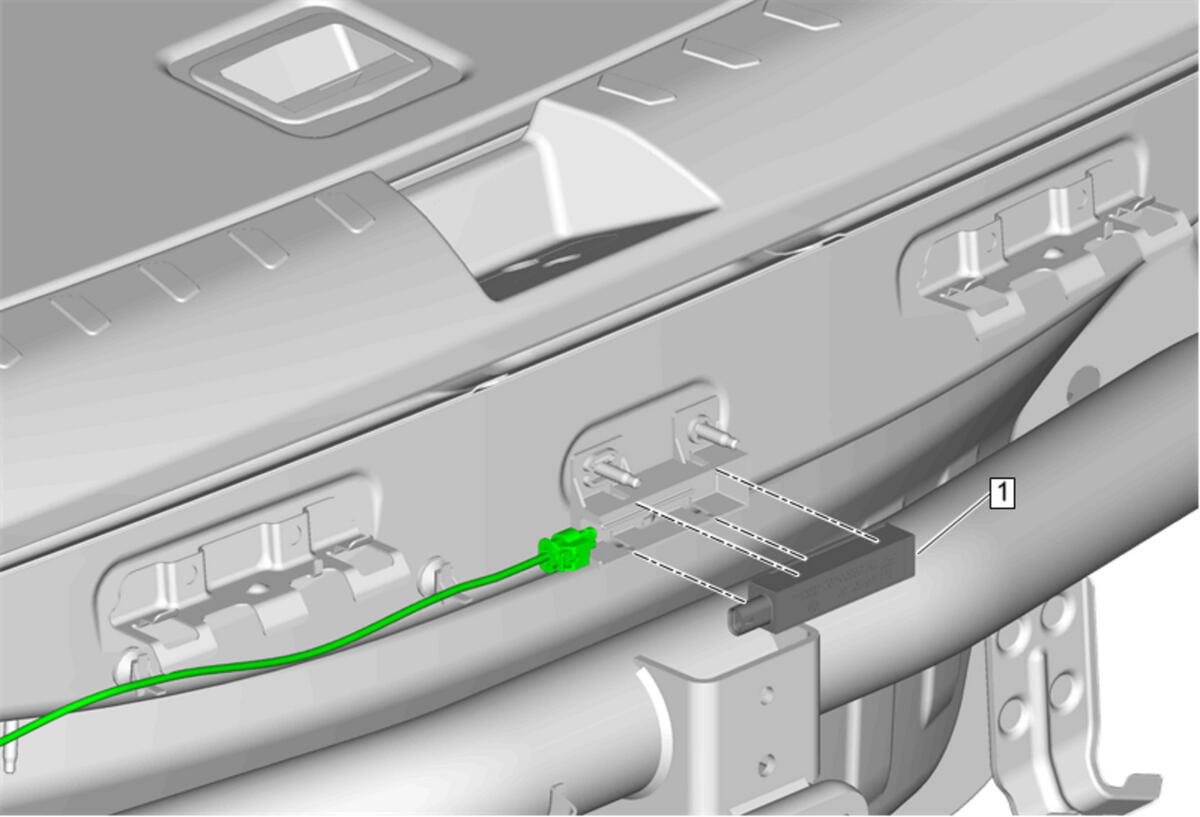

GM4769934Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Removal And Installation
1 Low Frequency Rear Bumper Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
