Removal Procedure

  1. GM5384859Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Closeout Panel (1) - Remove - Rear Compartment Closeout Panel Replacement

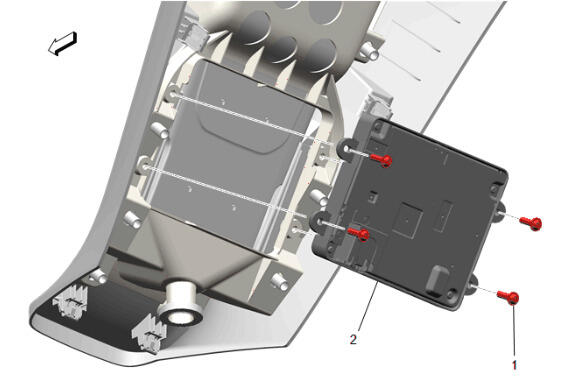

  2. GM5541077Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  3. Wireless Charging System Module (2) - Remove
