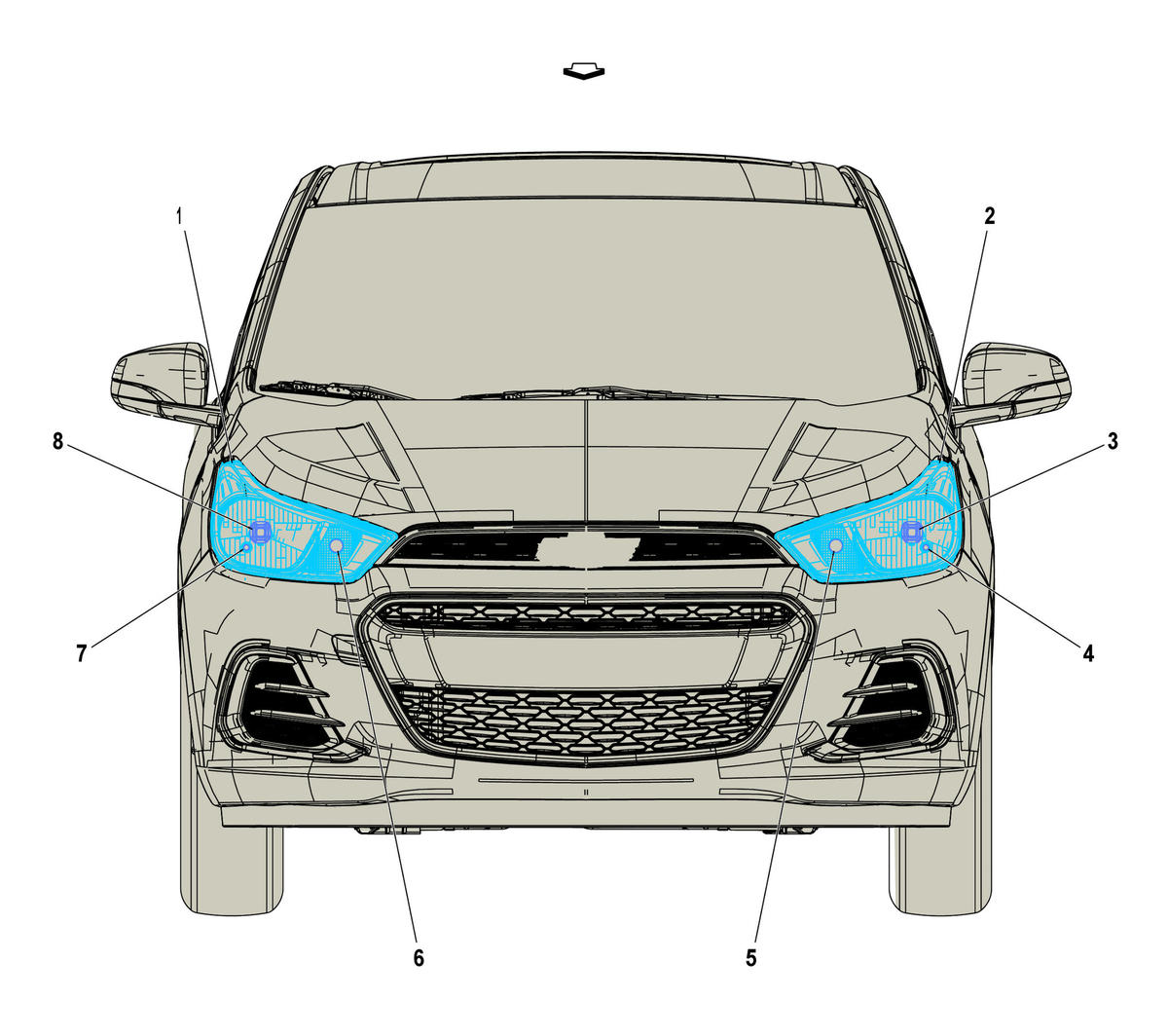

Front of the Vehicle Components (SBM-TUJ)
Front of the Vehicle Components (SBM-TUJ)
| Component Name | Callout |
|---|---|
| E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right X1 (SBM+T3W) , or E13RA Headlamp Assembly - Right X2 (SBM+T3W) , or E13RA Headlamp Assembly - Right X3 (SBM+T3W) | 1 |
| E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left X1 (SBM+T3W) , or E13LA Headlamp Assembly - Left X2 (SBM+T3W) , or E13LA Headlamp Assembly - Left X3 (SBM+T3W) | 2 |
| E4G Headlamp - Left Low Beam | 3 |
| E4J Park Lamp - Left Front | 4 |
| E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (-TUJ) | 5 |
| E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (-TUJ) | 6 |
| E4K Park Lamp - Right Front | 7 |
| E4H Headlamp - Right Low Beam | 8 |
