Front of Vehicle Components

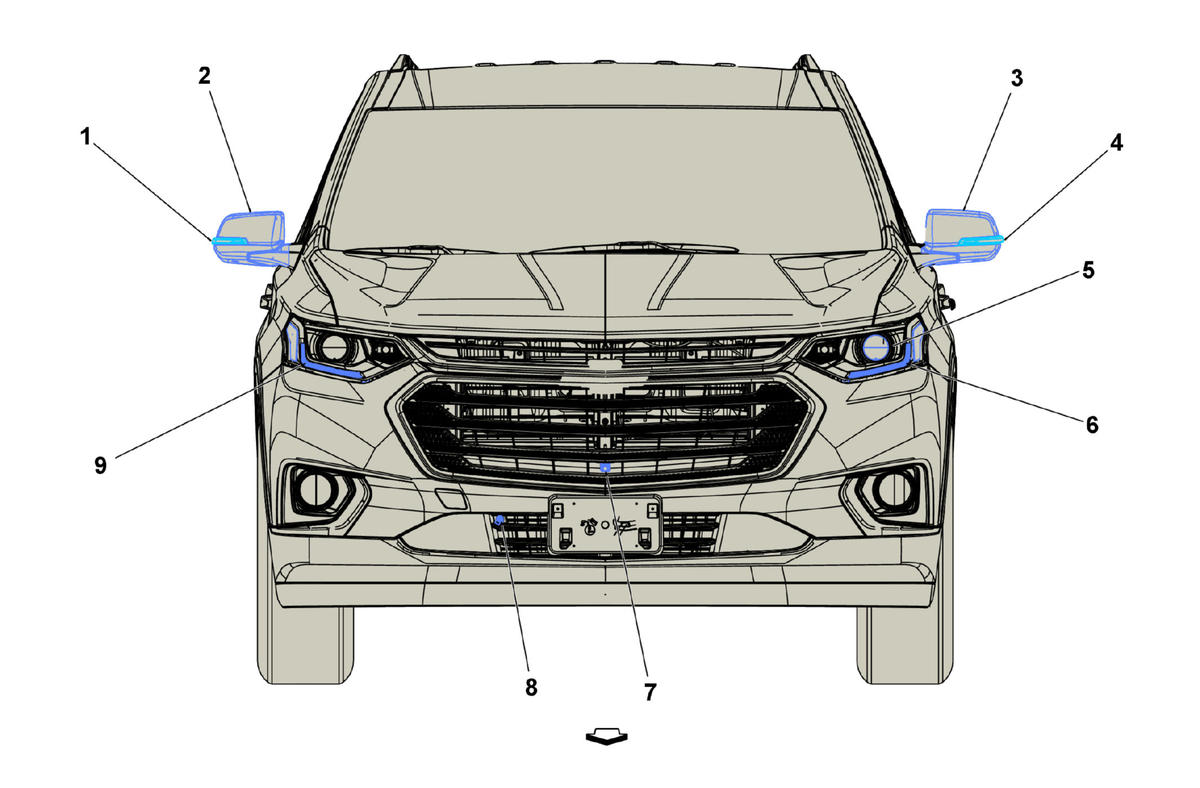

GM5870354Courtesy of GENERAL MOTORS COMPANY
Front of Vehicle Components

Component Name Callout
A9B Outside Rearview Mirror - Passenger 2
A9A Outside Rearview Mirror - Driver 3
E4Y Turn Signal Repeater Lamp - Left 4
E4G Headlamp - Left Low Beam 5
E4AC Park/Daytime Running Lamp - Left 6
B174G Frontview Camera - Grille (UV2) B174G Frontview Camera - Grille (UV2) 7
B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor 8
E4AD Park/Daytime Running Lamp - Right 9
