Q97M Engine Coolant Flow Control Valve - Main
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

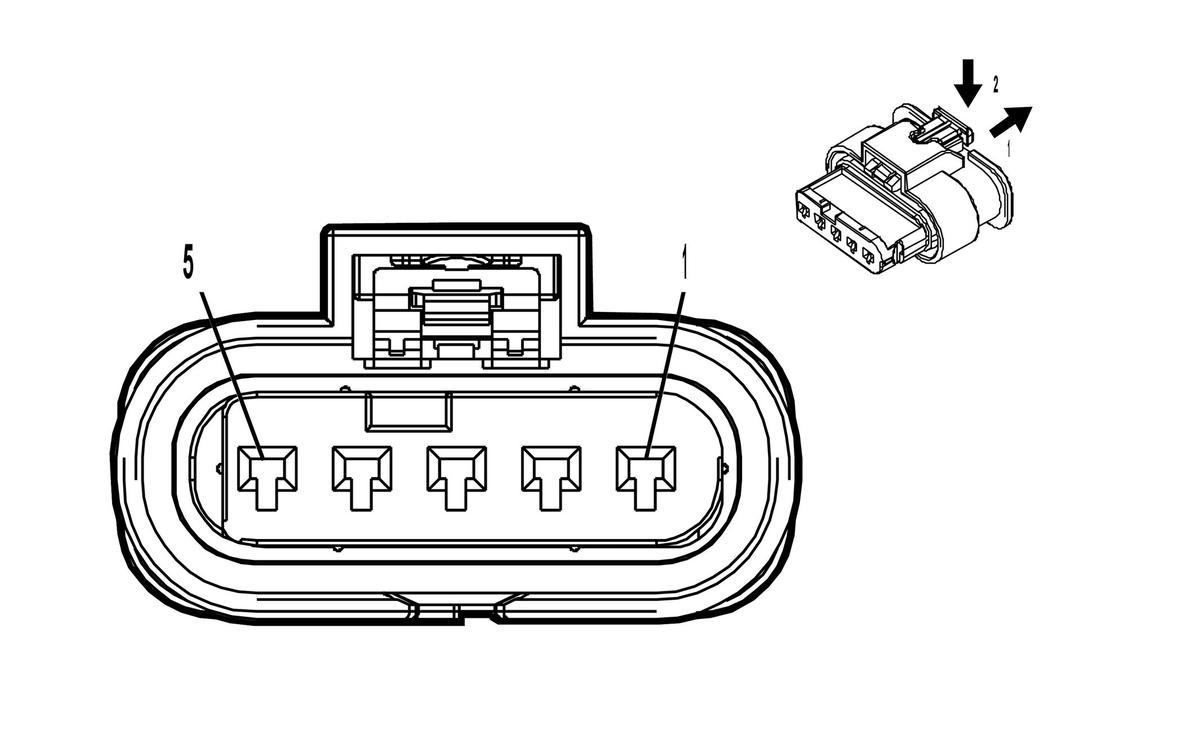

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 33150835
- Service Connector: 19371230
- Description: 5-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY / BU |
2971 |
Coolant Flow Control Actuator Control Open |
I |
- |
| 2 |
0.5 |
GY / BN |
2972 |
Coolant Flow Control Actuator Control Close |
I |
- |
| 3 |
0.5 |
GY |
2973 |
Coolant Flow Control Valve Position Signal |
I |
- |
| 4 |
0.5 |
BK / YE |
548 |
Engine Control Sensors Low Reference 1 |
I |
- |
| 5 |
0.5 |
BU / RD |
460 |
Engine Control Sensors 5 Volt Reference 1 |
I |
- |
