Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

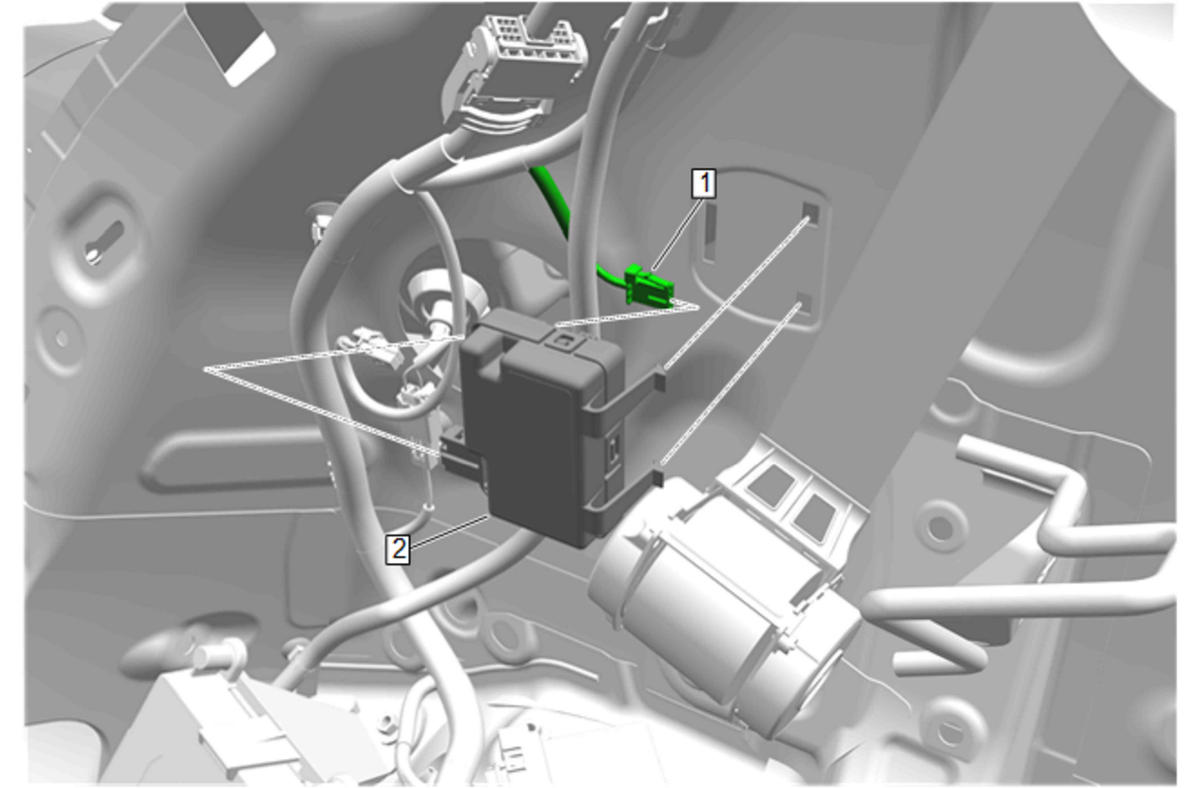

Remote Control Door Lock Receiver (2) - Install
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

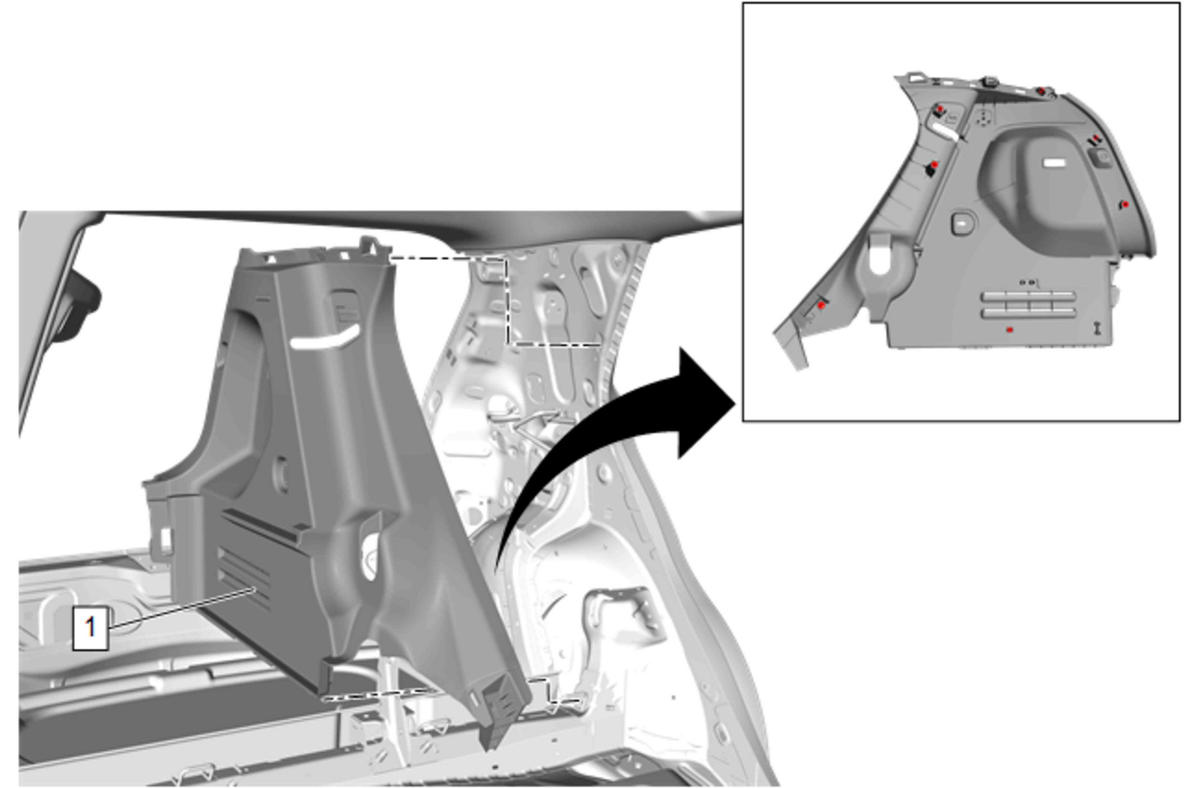

Quarter Lower Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Feed the rear seat belt through the body lock pillar upper trim panel.

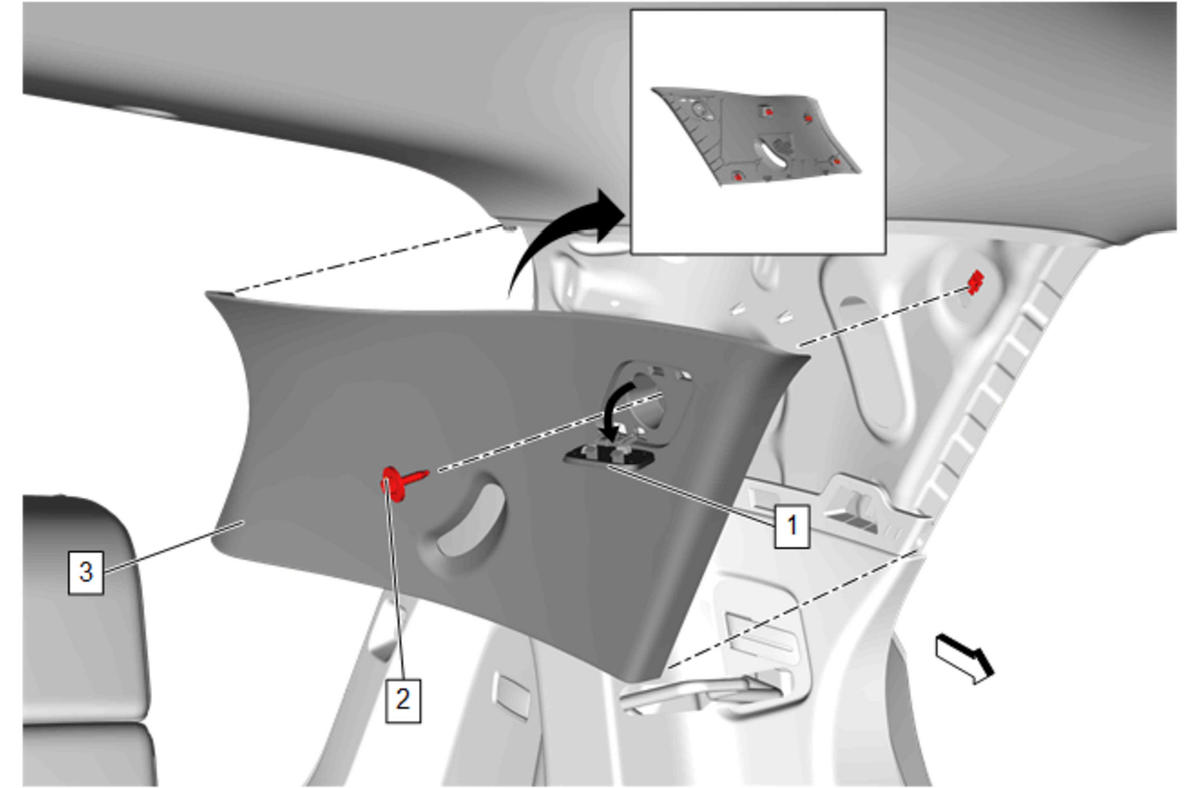

Body Lock Pillar Upper Trim Panel (3) - Install
Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Rear Seat Back Cushion - Install - Rear Seat Back Cushion Removal and Installation (40 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (60 Percent Seat)
Courtesy of GENERAL MOTORS COMPANY

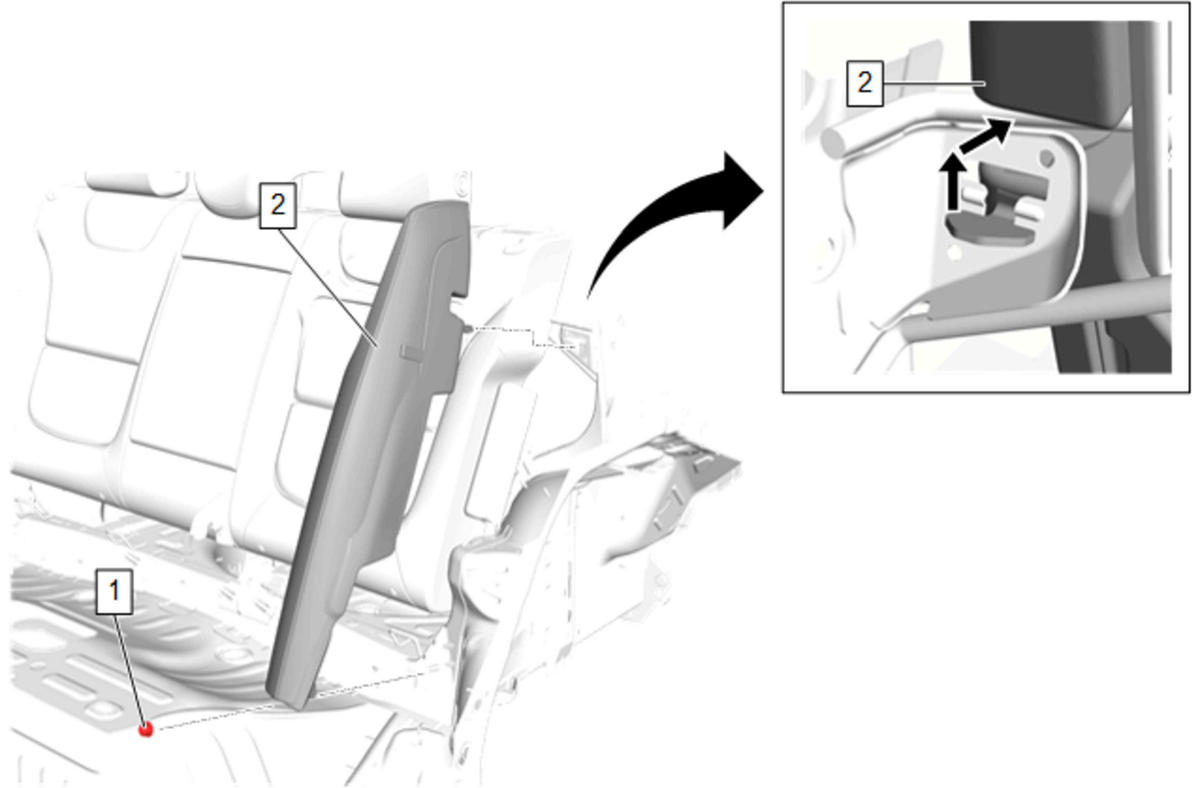

Rear Seat Back Bolster (2) - Install
Rear Seat Back Bolster Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

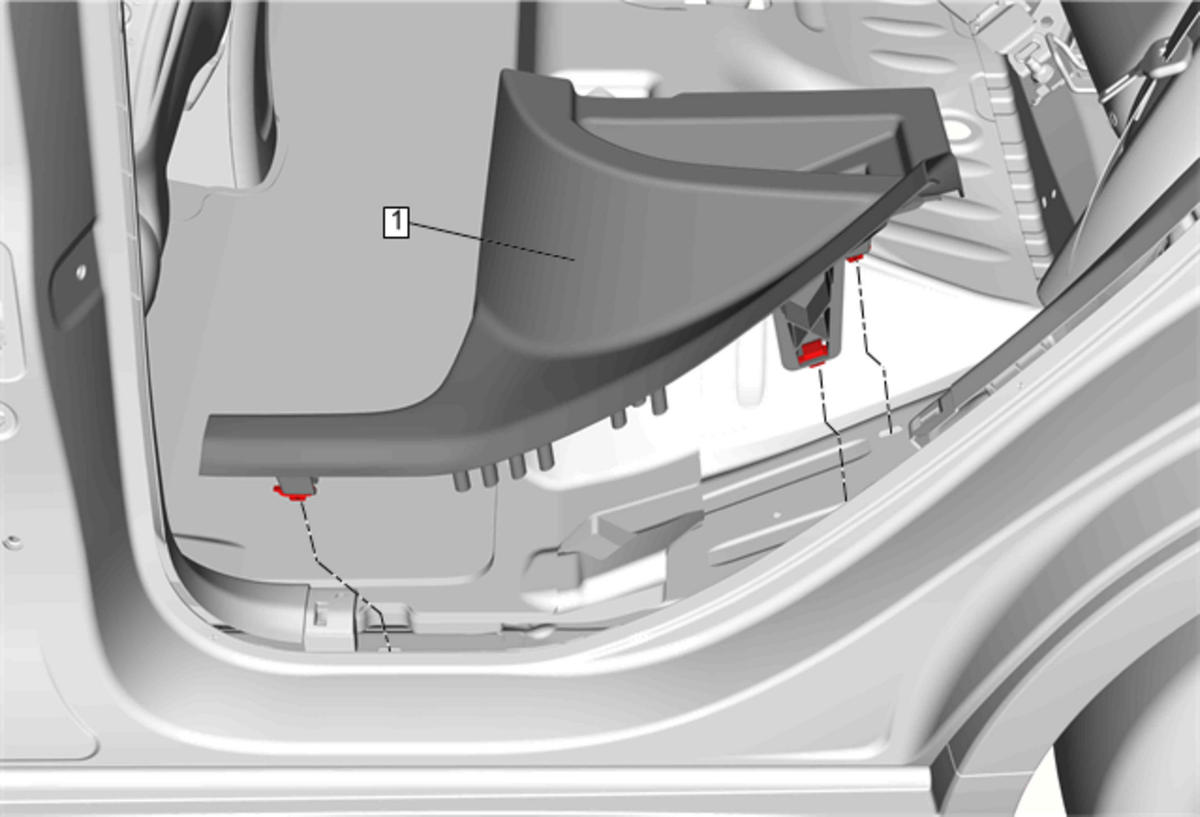

Rear Side Door Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion (1) - Install - Rear Seat Cushion Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

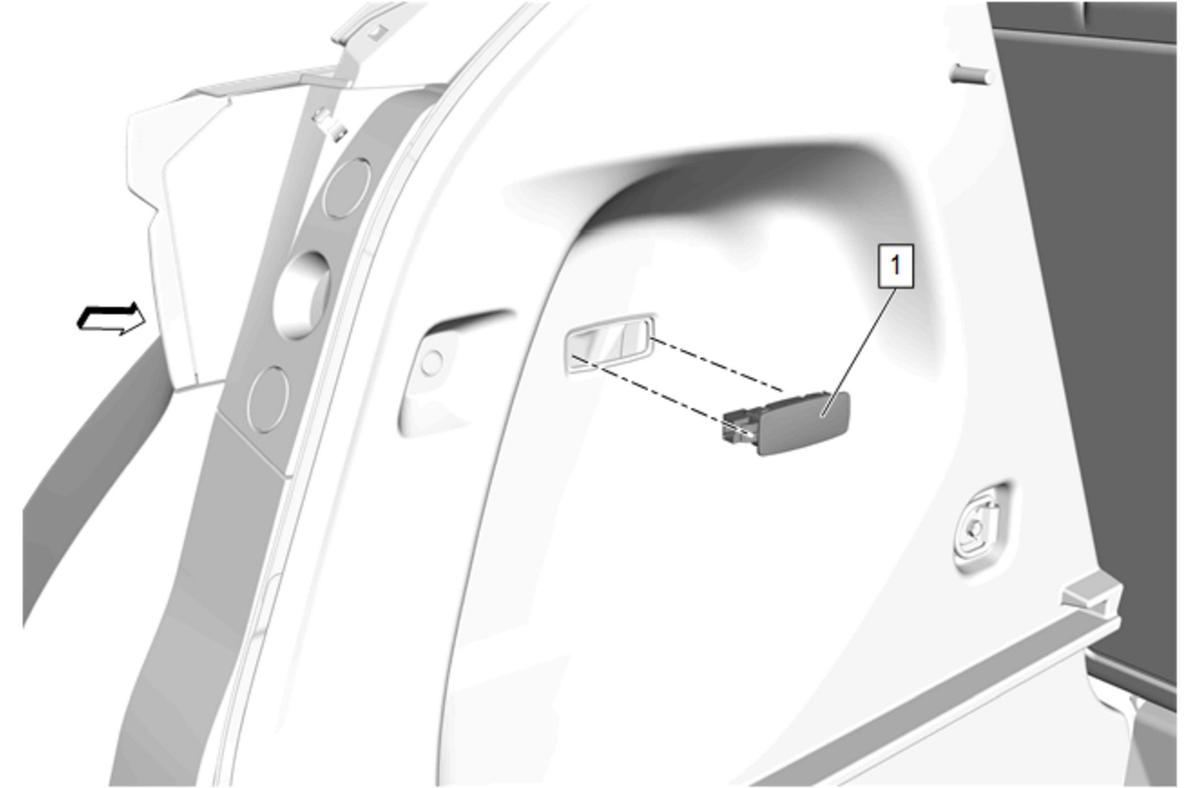

Rear Compartment Courtesy Lamp (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Both sides shown. The quantity is for the one side.

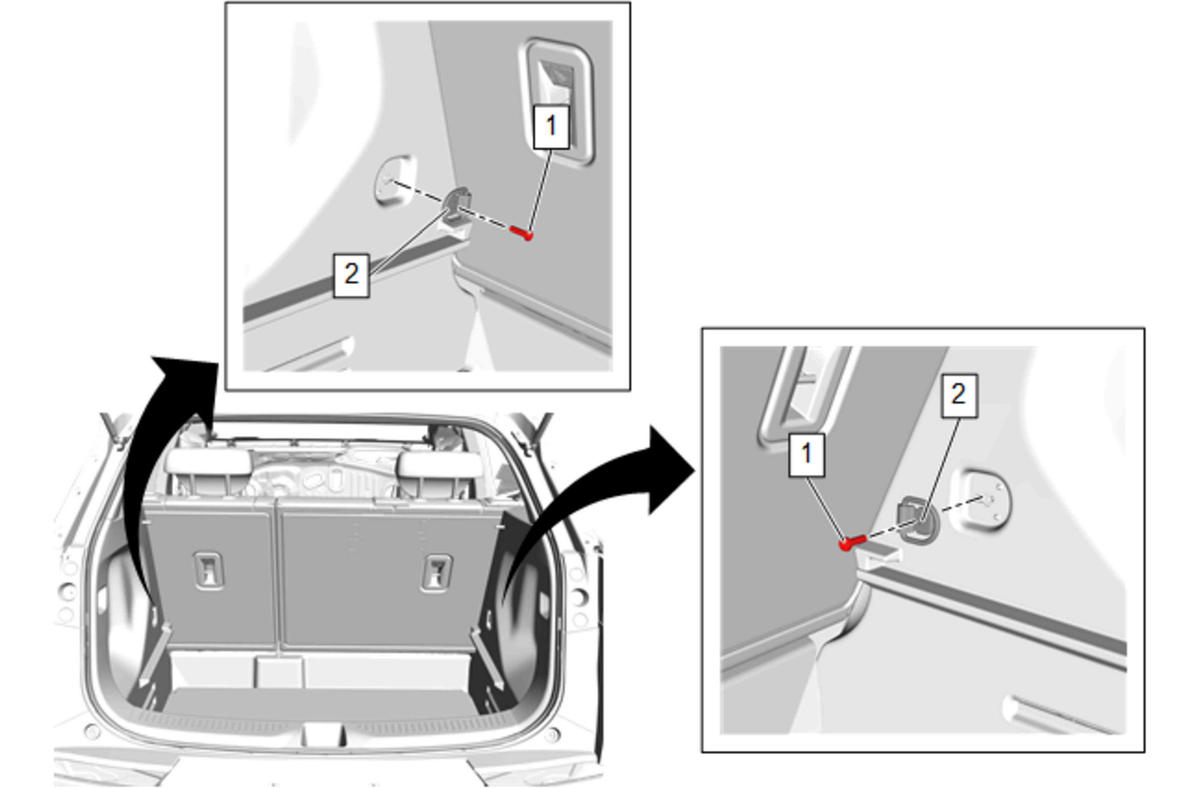

Cargo Tie Down Loop (2) - Remove
Cargo Tie Down Loop Fastener (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

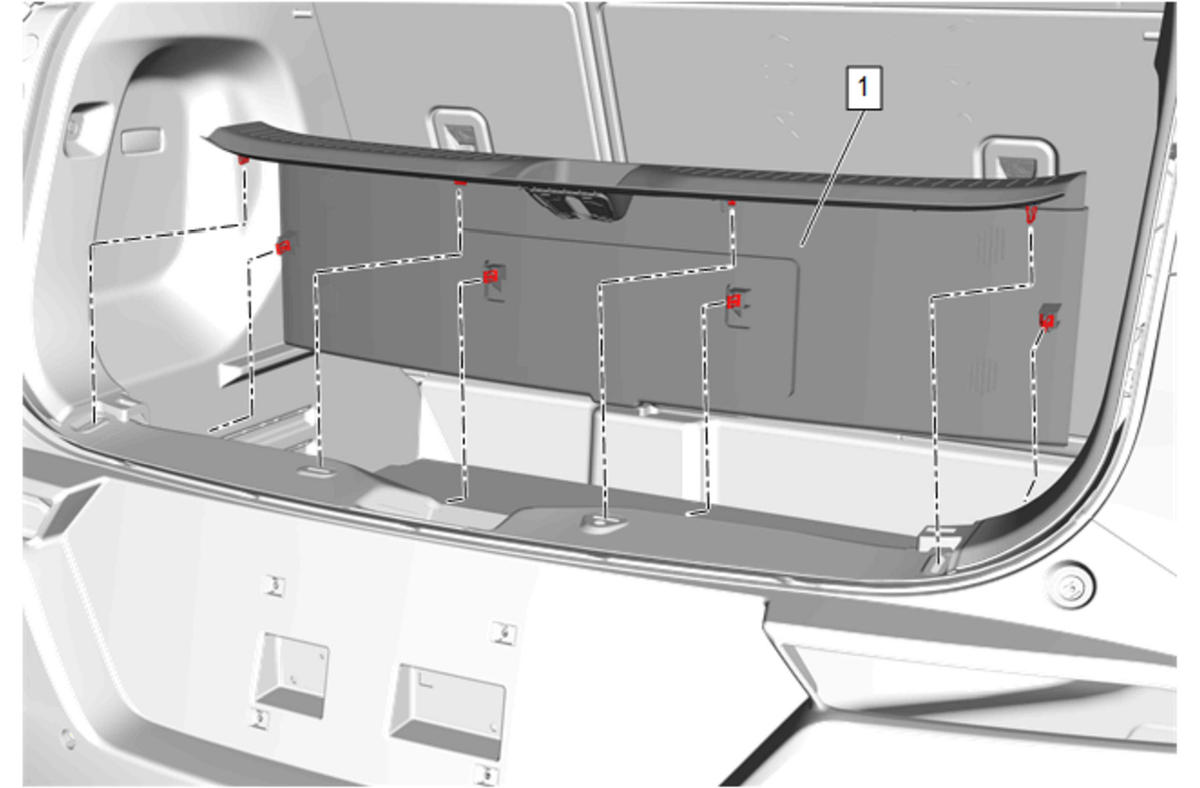

Liftgate Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Stowage Shelf (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Stowage Shelf (1) - Install
Courtesy of GENERAL MOTORS COMPANY

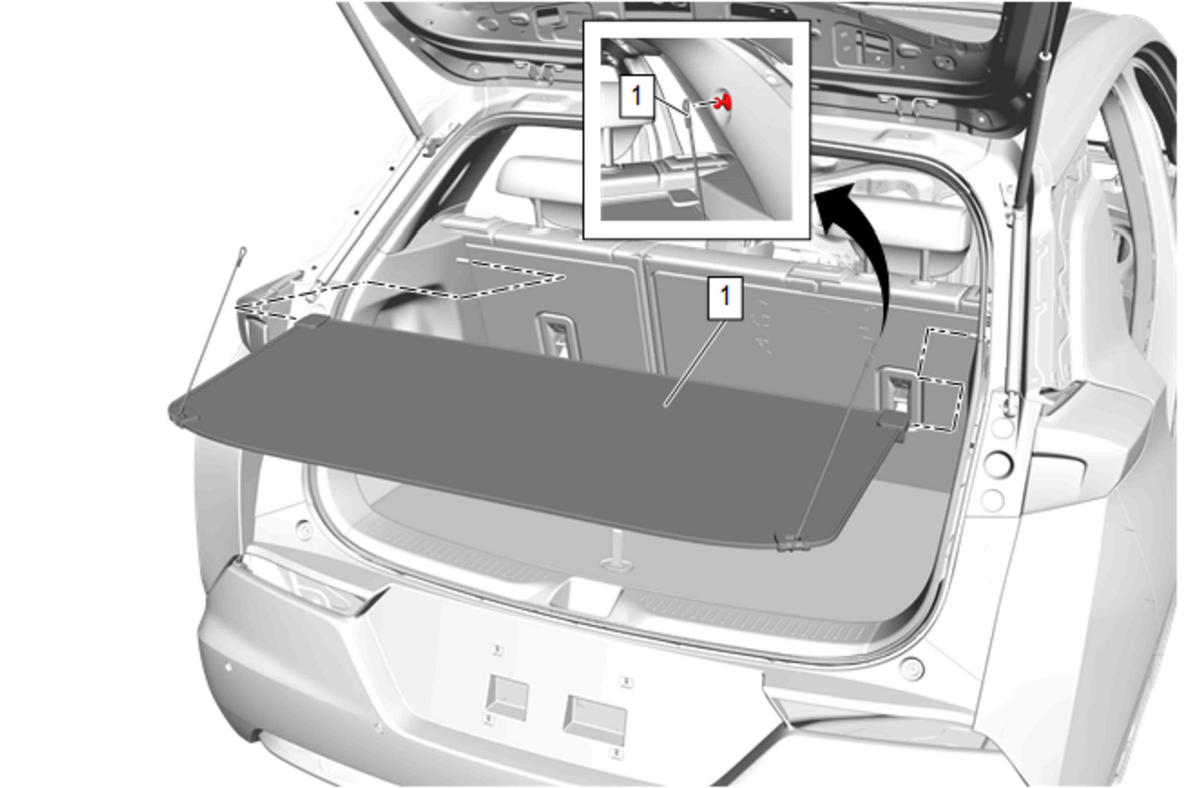

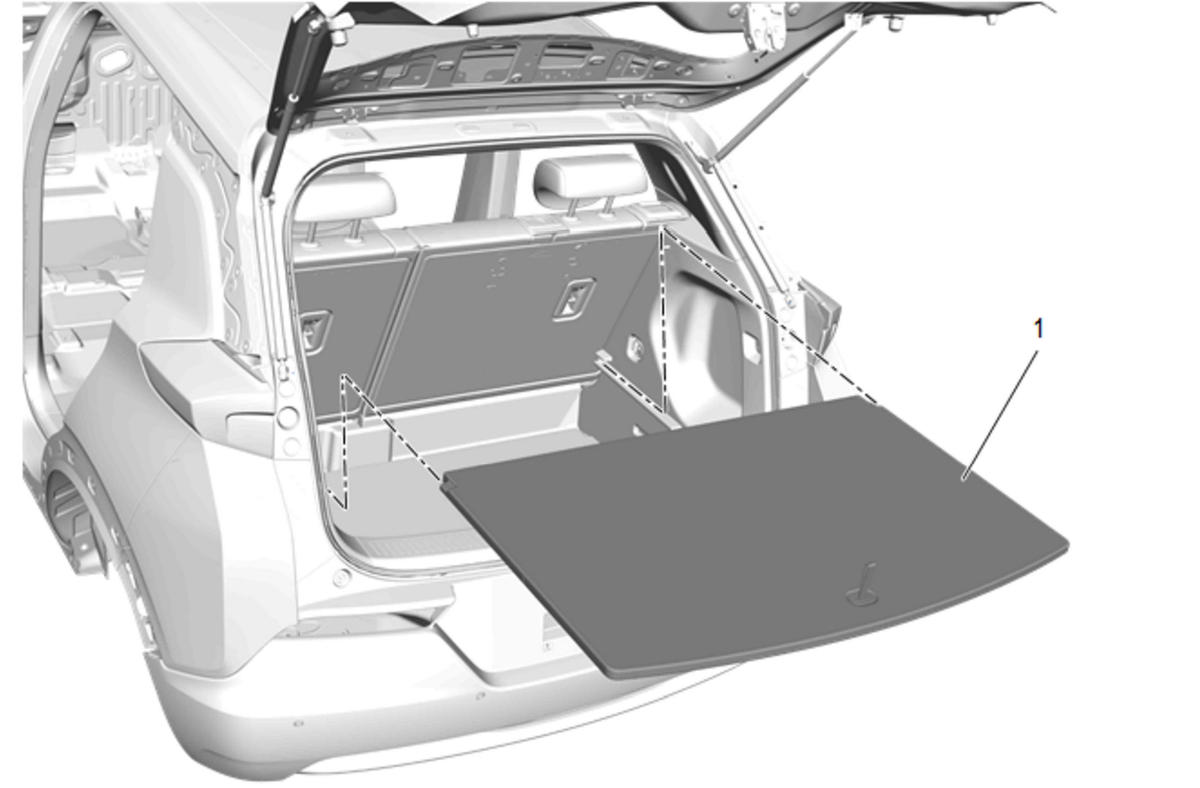

Luggage Shade (1) - Install
Enable the SIR System. SIR Disabling and Enabling
