Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Luggage Shade (1) - Remove
1. Open the liftgate.
2. Release the luggage shade straps from the luggage shade pivot.
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Stowage Shelf (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

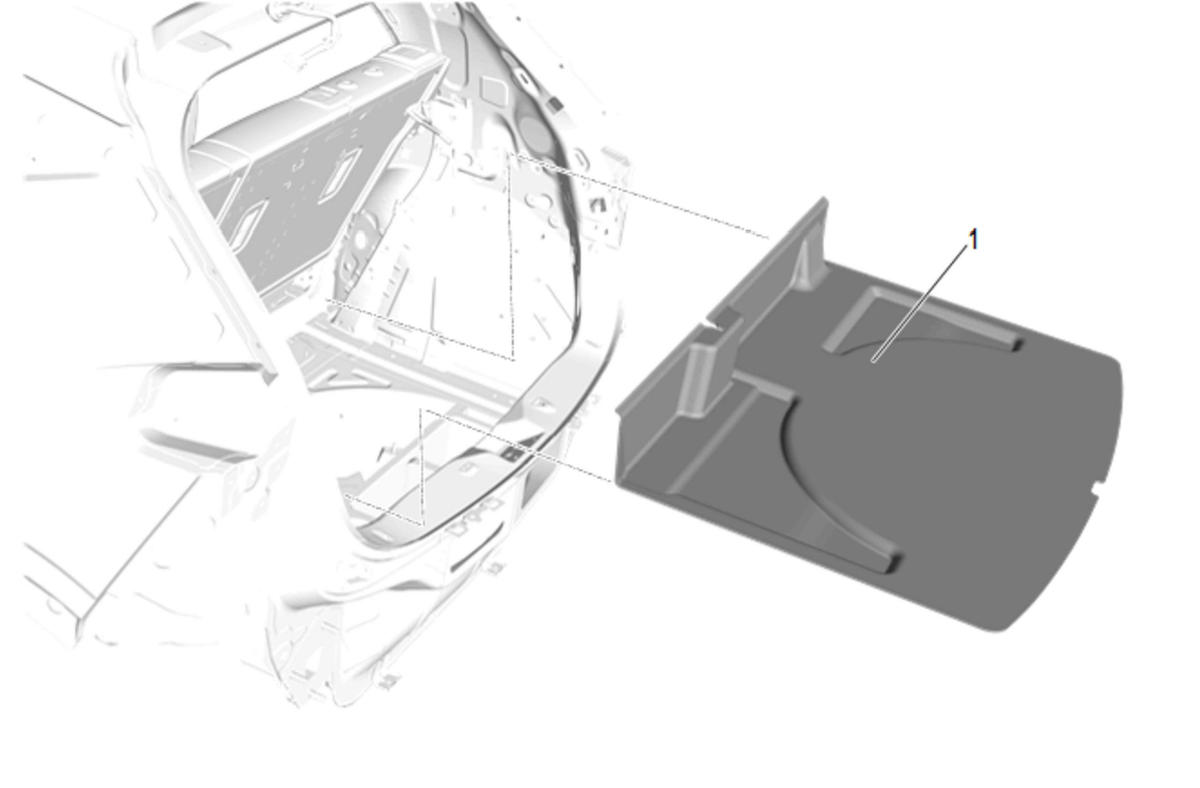

Load Floor Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Grasp and gently pull up on the liftgate sill garnish molding (1) in order to release the integral retaining clips.
Liftgate Sill Garnish Molding (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Both sides shown. The quantity is for the one side.

Cargo Tie Down Loop Fastener (1) - Remove
Cargo Tie Down Loop (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic tool to remove.
Disconnect the electrical connector.
Rear Compartment Courtesy Lamp (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion (1) - Remove - Rear Seat Cushion Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Sill Garnish Molding (1) - Remove
1. Starting at the front of the sill garnish molding, pull upward at the B-Pillar joint to disengage sill garnish molding.
2. Work your way rearward disengaging all of the garnish molding clips then pull forward to disengage from the C-Pillar lower.
3. Replace the retainers as required.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Back Bolster Nut (1) - Remove

NOTE:

Do not pull on lower part of bolster, as this can bend or damage the part.

Rear Seat Back Bolster (2) - Remove
1. Compress foam on back of the rear seat back bolster above upper hook, and pull bolster up and out.
2. Disconnect the electrical connector.
Rear Seat Back Cushion - Remove - Rear Seat Back Cushion Removal and Installation (40 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (60 Percent Seat)
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
Quarter Window Trim Finish Panel Bolt (2) - Remove
Body Lock Pillar Upper Trim Panel (3) - Reposition
1. Use a flat bladed plastic trim tool.
2. Grasp and gently pull up on the body lock pillar upper trim panel (3).
3. Pull the rear seat belt through the body lock pillar upper trim panel (3).
Courtesy of GENERAL MOTORS COMPANY

Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel.
Quarter Lower Rear Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Remote Control Door Lock Receiver (2) - Remove
