Installation Procedure

  1. GM5683096Courtesy of GENERAL MOTORS COMPANY

    Keyless Entry Control Module Bracket (1) - Install

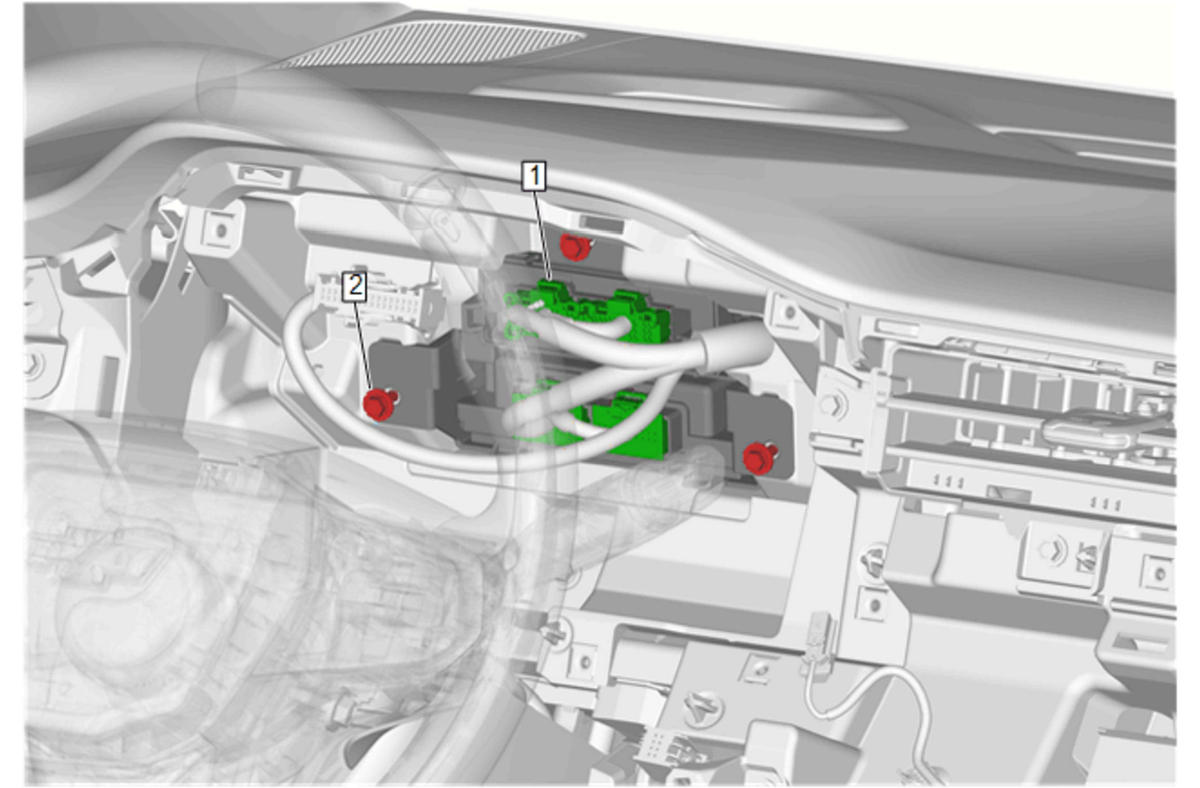

  2. GM5683095Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Keyless Entry Control Module Bolt (2) - Install and tighten [3x] 2.5 N.m (22 lb in)

  3. Connect the electrical connectors (1).

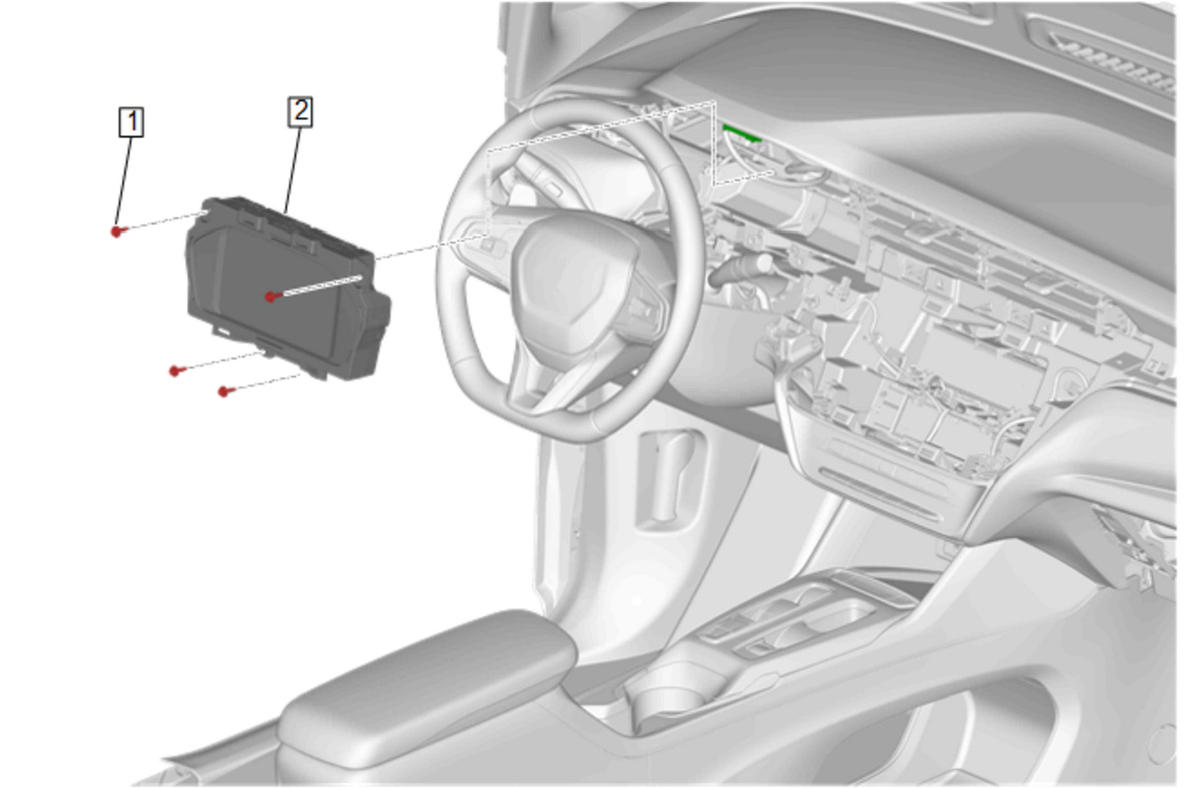

  4. GM5679818Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement
