Side Obstacle Detection Control Module Replacement

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

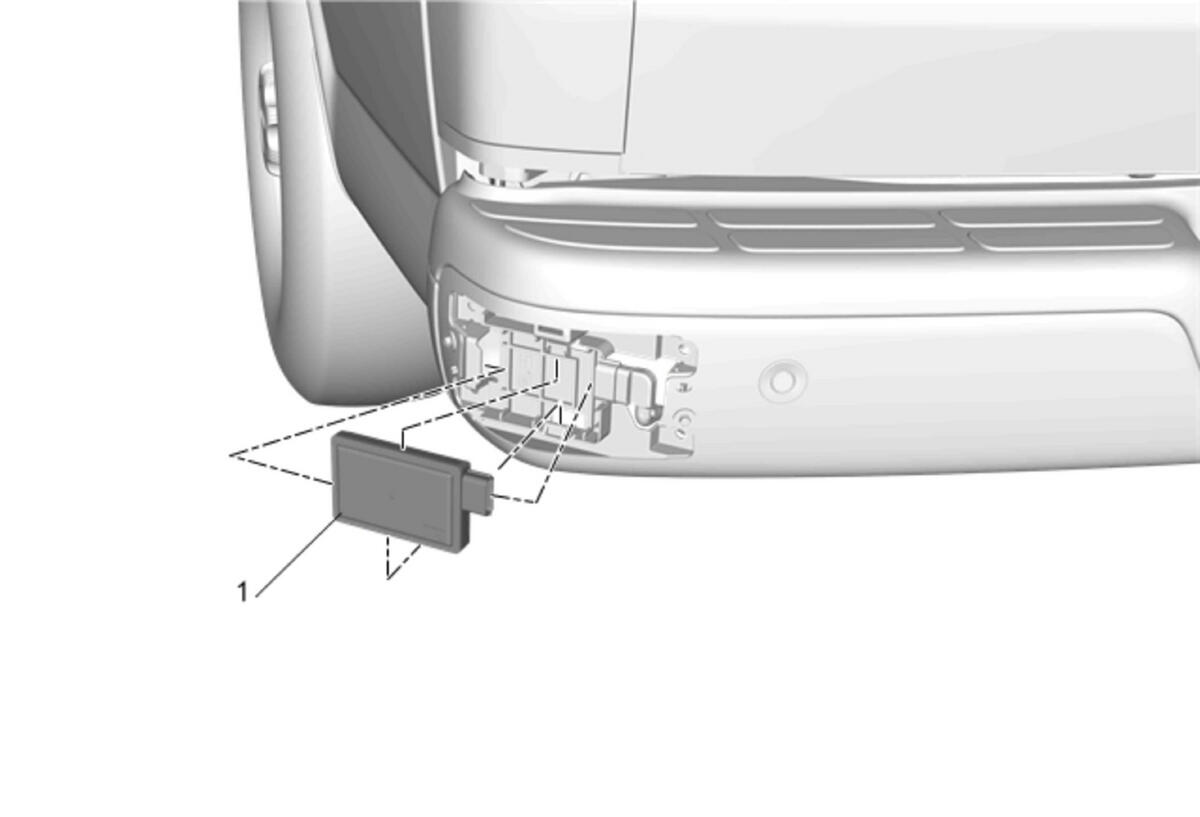

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Valance Panel Replacement .
1	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. Release the retaining tabs and slide the module out of the bracket. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Rear Bumper Valance Panel Replacement .

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs and slide the module out of the bracket.
Perform the necessary programming and setup procedure: Control Module References
