Engine Control Module Bracket Replacement

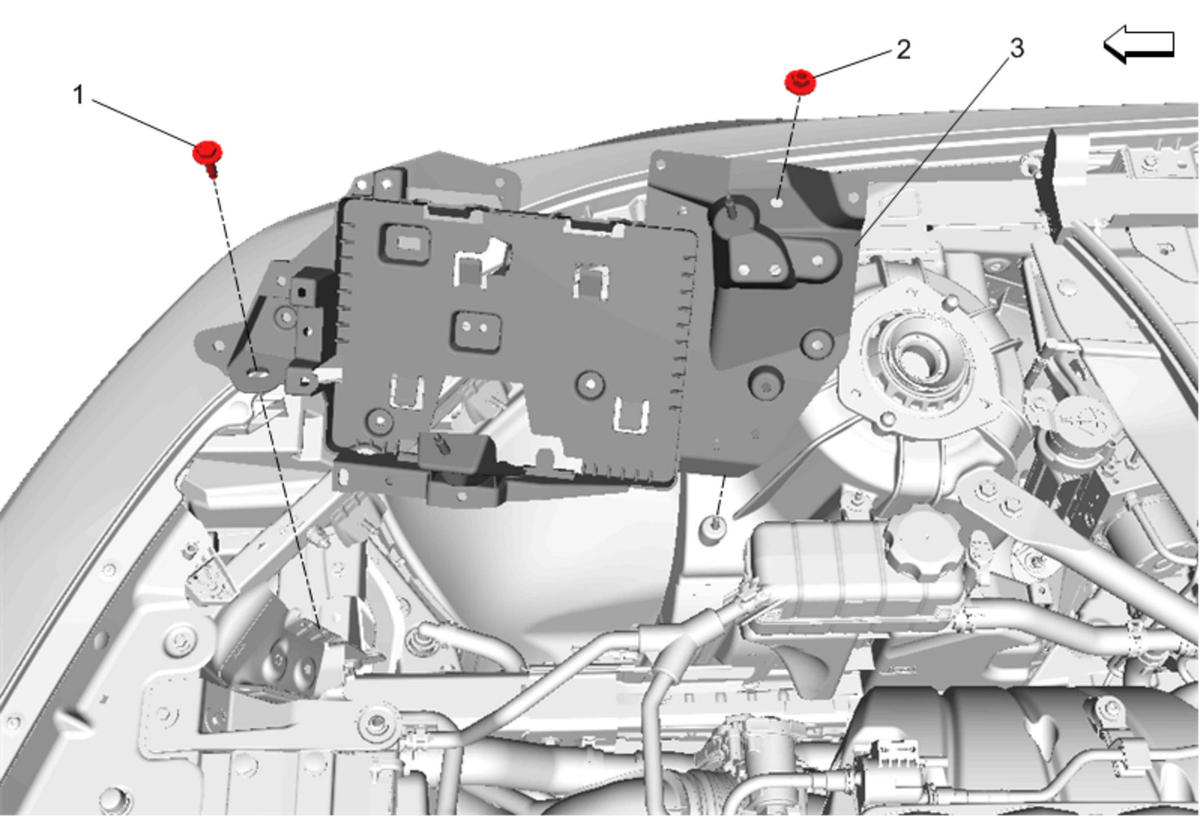

GM4282817Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Engine Control Module Replacement
  2. Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1)
  3. Disconnect the wiring harness retainers on top and bottom side of engine control module bracket.
1 Engine Control Module Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Engine Control Module Bracket Nut
Tighten
9 N.m (80 lb in)
3 Engine Control Module Bracket
